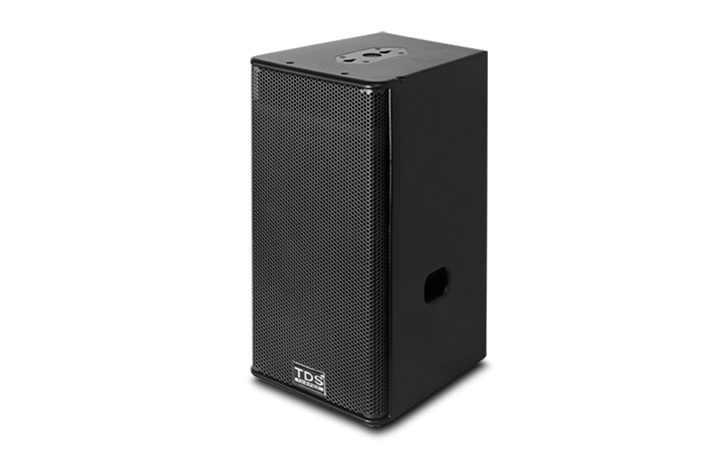

GEO S1210 (Two-way 1x12＂Line Array System)
•GEO S1210 is a two-way line array system.
•The compression driver with 75mm voice coil.
•New designed horn with excellent HF performance.
•Compact cabinet more convenient for mobile usage.
•Medium size mobile live performance.
•Theatre, multi-function hall.
•Night club usage.
| Line Array Element | |

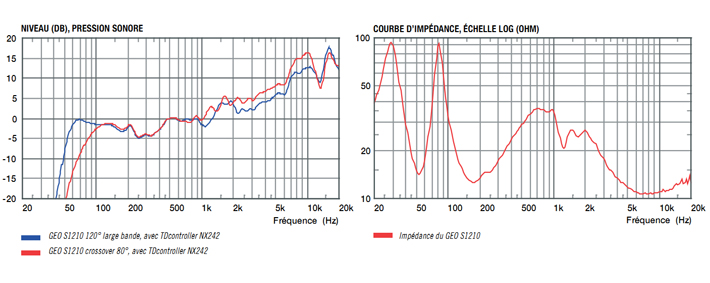

| Frequency Range (-10 dB): | 50Hz – 20k Hz |
| Frequency Response ( ±3dB): | 53Hz – 19k Hz |
| Sensitivity: | 103dB SPL Nominal. |
| Components | LF: one 12inch woofer in 16ohm. |
| HF: one compression driver with 75mm voice coil. | |
| Dispersion: | Coupling plane: configuration dependent, Non-coupling plane: 80°/120° |
| System Input Power Rating: | LF: 500W Continuous. 1000W Peak |
| HF: 100W Continuous. 200W Peak. | |
| Recommended Amplification: | |
| 3 x GEO S1202 in parallel | 3 x GEO S1202 in parallel HF: 875 to 1550W into 4 ohm LF: 1750 to 3100W into 4 ohm. |
| 4 x GEO S1202 in parallel | 4 x GEO S1202 in parallel HF: 1000 to 1800W into 4 ohm LF: 2000 to 3600W into 4 ohm. |
| 6 x GEO S1202 in parallel | 6 x GEO S1202 in parallel HF: 1650 to 3000W into 4 ohm LF: 3300 to 6000W into 4 ohm. |
| Physical Data | |

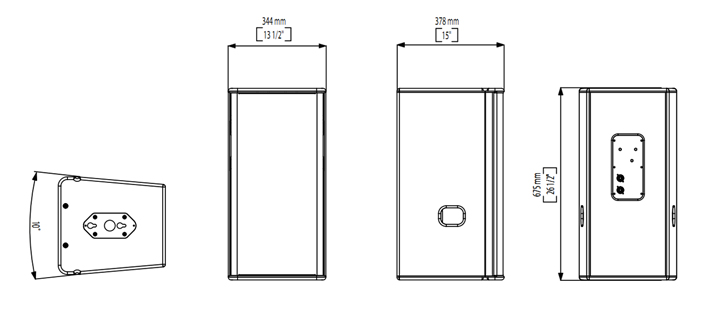

| Dimensions (W x H x D): | 674 x 344 x 378mm |
| Weight (net): | 29 kg |
| Connectors: | 2 x 4 point Speakon |
| Material: | Baltic birch plywood with structured black coating. |
| Finish: | Wear-resistant black textured paint |
| Front: | Polyester powder-coated steel grill. |
| Rigging: | Steel with dual coating zinc and polyester powder. |
