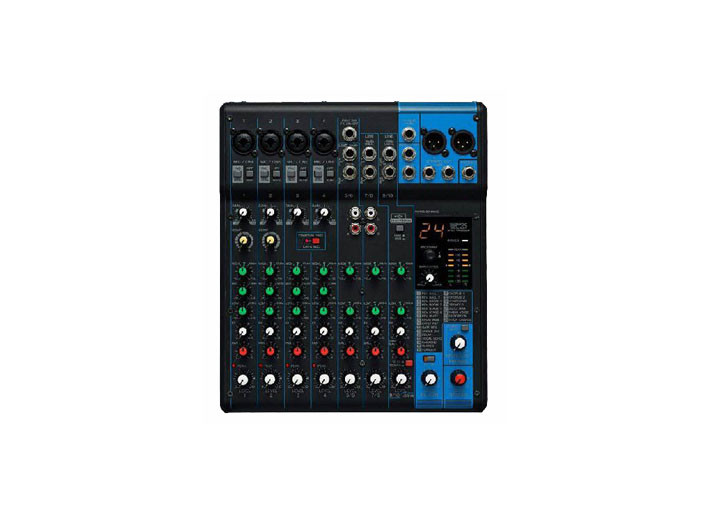

MG10XU(CONSOLE MIXER)

• 8,10 inputs in remarkable lightweight, portable designs.

• Built-in digital PSX multi-effect processor.

• All models feature high-quality Neutrik balanced XLR connectors on mono microphone/line channels and

  XLR-equipped stereo channels.

• Top-mounted input and output connectors for easy setup and re-patching.

• High-performance microphone preamplifiers with switchable phantom power.

• AUX send with master send controls for convenient processing and monitoring.

• Return level controls for the AUX and STEREO BUS.

• Bright meters for visual level monitoring.

• Smooth 60-millimeter faders & illuminated channel ON switches.

Total Harmonic Distortion (ST OUT):
<0.1%(THD+N)@ +14dB
equency Response (ST OUT):
Fr (20Hz – 20 KHz) +1dB/-3dB
Input channel muting:
>93dB
Graphic Equalizer:
7-band
Internal Digital Effect:
16 program, parameter control.
Input and output impedance:
MICO input: 3K ohm
Mono input: 10K ohm
Stereo input: 10K ohm
Output impedance:
< 150 ohm
Power consumption:
35W
