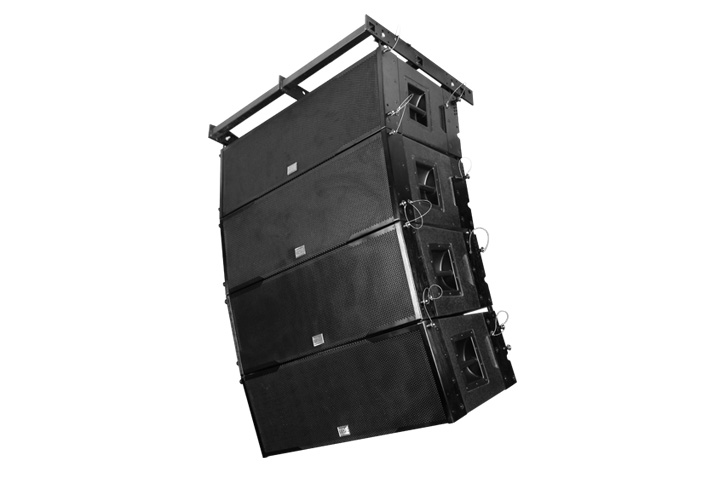

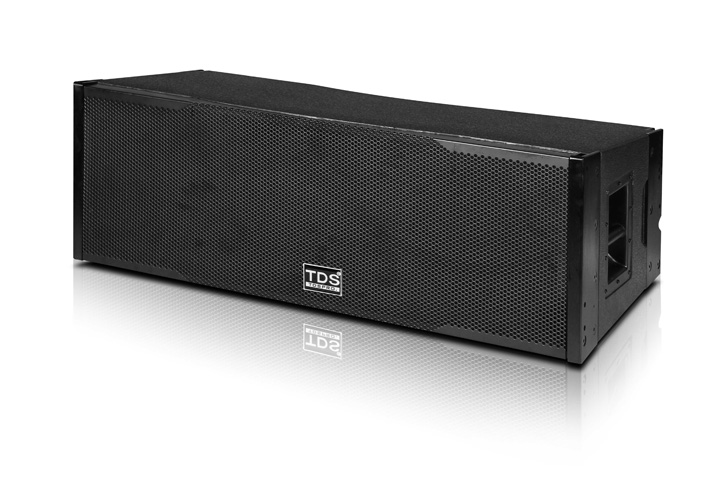

MODEL:LA312 (2×12＂3-way line array System)
•LA312 is a three-way line array system.
•Three units compression driver with 44mm voice coil.
•High efficiency 6.5inch neodymium MF transducer.
•Two units high SPL 12inch LF transducer.
•Fast installation rigging system
•More choices for vertical coverage angle.
•2 x NL8MP Neutrick Speakon connector.
•Large scale indoor & outdoor performance.
•Fixed installation in Stadium, Theatre etc.
•Large scale mobile performance.
| TECHNICAL SPECIFICATION | |
| Frequency Range(-10dB)： | 40Hz-20kHz |

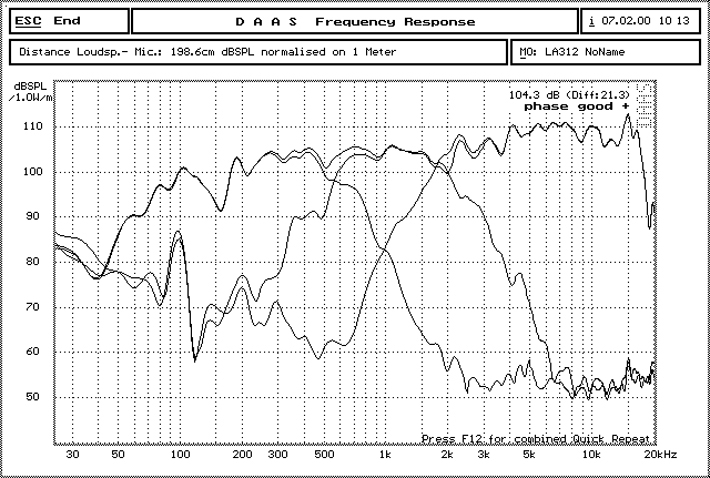

| Frequency Response(±3dB)： | 60Hz-18kHz |
| Horizontal Coverage Angle(-6dB): | 90° |
| Vertical Coverage Angle (-6dB)： | Varies with array size and configuration. |
| System Input Power Rating： | LF：800W Continuous. 1600W Peak. |
| MF：300W Continuous. 600W Peak. | |
|
|
HF：180W Continuous. 360W Peak. |
| Maximum Peak Output ： | 139dB |
| Recommended Amplification: | LF： 1200W into 8 ohms |
| MF： 800W into 8ohms | |
|
|
HF： 600W into 8ohms |
| PHYSICAL DATA | |

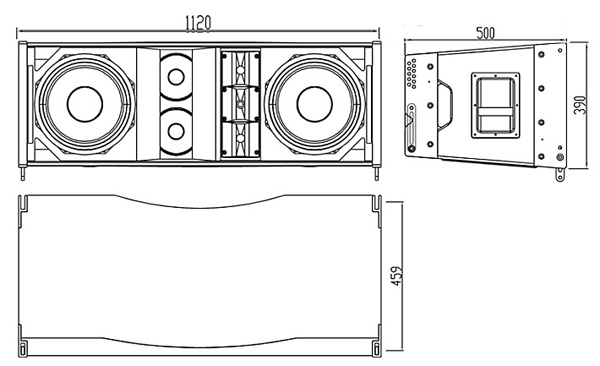

| Dimensions： | W1120 x H390 x D500 (mm) |
| Weight(net)： | 56 kg |
| Connectors： | 2 x NL8MP Neutrik Speakon connectors |
| Cabinet Material： | 18mm birch plytwood |
