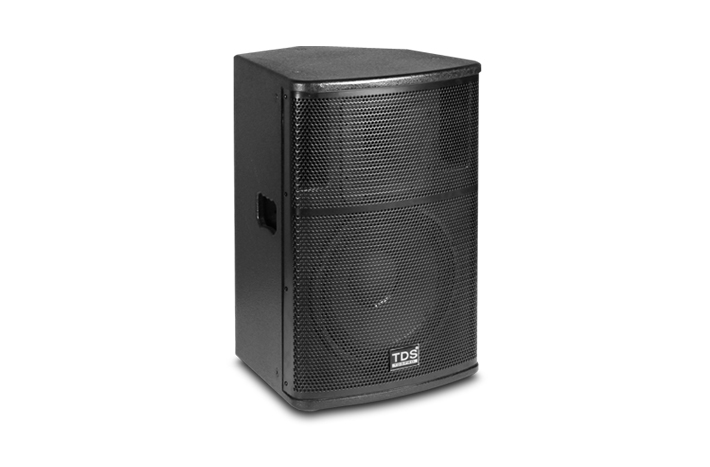

MODEL:MP12(Two-way 12" Full Range Speaker)

•HF driver with 44mm voice coil.

•Durable 12inch LF transducer with 65mm voice coil.

•Well-designed grill.

•High cost performance speaker.


•Theater sound systems

•Fixed installation in club.

•Music playback in nightclub.


System Type：
 2-way 12" full range

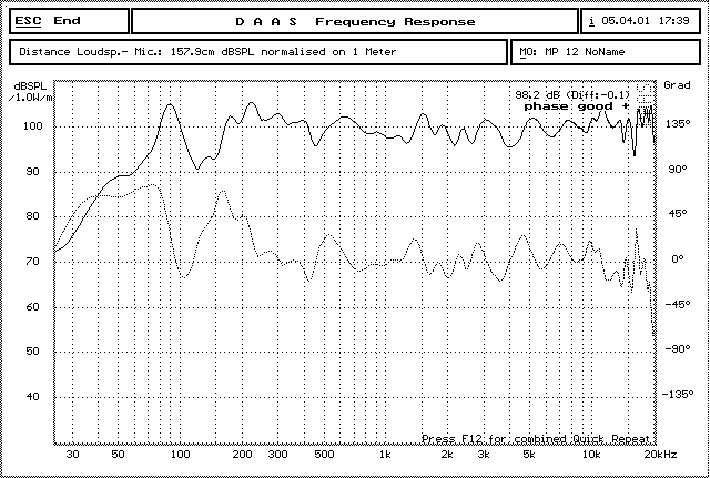

Frequency Response：
 50Hz-20KHz ±3 dB
Dispersion(H×V)：
 90°× 50°
Handling Power：
 250W(RMS)/500W(PEAK)
Sensitivity：
 98 dB
MAX.SPL.：
 125 dB
Impedance：
 8 ohms
Suspension：
 Yes

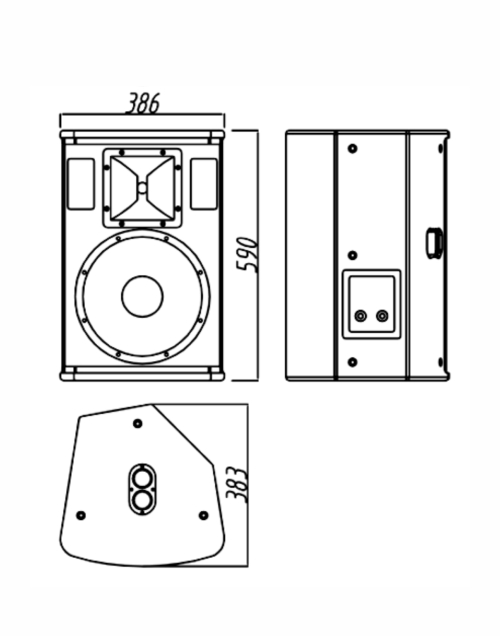

Dimensions ：
 W386×H590×D383(mm)
Weight(net)：
 20kg
