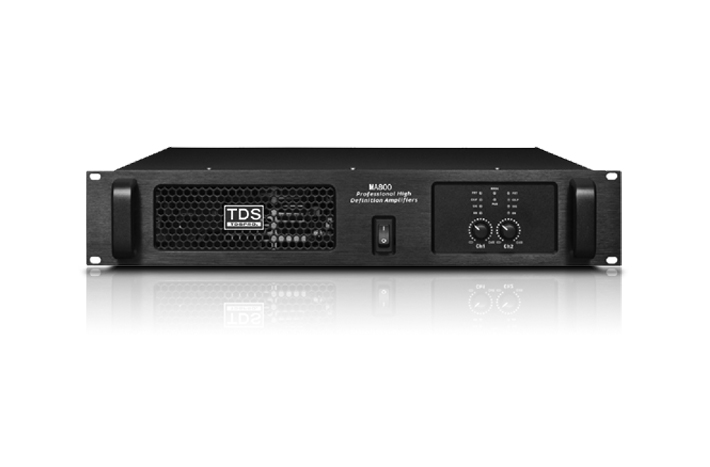

MA SERIES(Professional Power Amplifier )
•Super sonic performance
•Increased output current capacity
•High efficiency cooling fans.
•Advanced protection circuits.
•Soft start
•High cost performance
•Live sound reinforcement
•Fixed installation.
| MODEL | MA-1400 | MA-1000 | MA-800 | MA-600 | MA-400 | MA-300 | MA-200 |
| 8Ω Stereo | 1400Wx2 | 1000Wx2 | 800Wx2 | 600Wx2 | 400Wx2 | 300Wx2 | 200Wx2 |
| 4Ω Stereo | 1800Wx2 | 1500Wx2 | 1300Wx2 | 960Wx2 | 700Wx2 | 480Wx2 | 320Wx2 |
|
2Ω Stereo |
2400Wx2 | 2000Wx2 | 1800Wx2 | 1400Wx2 | 1000Wx2 | 700Wx2 | 500Wx2 |
|
8Ω Bridge |
3600W | 3000W | 2600W | 1920W | 1400W | 960W | 640W |
|
4Ω Bridge |
4800W | 4000W | 3600W | 2800W | 2000W | 1400W | 1000W |
| Frequency Response | 20Hz~20KHz+0/-0.3dB | ||||||
| THD+N | <0.05%@4Ω 1KHz | ||||||
| S/N Rate |
≥110dB |
≥110dB |
≥110dB |
≥110dB |
≥105dB |
≥105dB |
≥105dB |
| Slew Rate | 60V/us |
60V/us |
60V/us |
60V/us |
60V/us |
60V/us |
60V/us |
| Damping Factor |
≥800@8Ω |
≥800@8Ω |
≥800@8Ω |
≥800@8Ω |
≥800@8Ω |
≥800@8Ω |
≥800@8Ω |
| Crosstalk |
≥800@8Ω 1KHz |
||||||
| Input Impedance | 20KHz(Balance)/10KΩ(Unbalance) | ||||||
| Protect | DC/SHORCIRCUIT/OVER HEAT/SOFTSTART | ||||||
| Helght | 3U | 3U | 2U | 2U | 2U | 2U | 2U |
| Packing Dimensions | 123x483x472mm |
89x483x472mm |
|||||
| Gross Weight | 31Kg | 29Kg | 25Kg | 21Kg | 19Kg | 17Kg | 15Kg |
