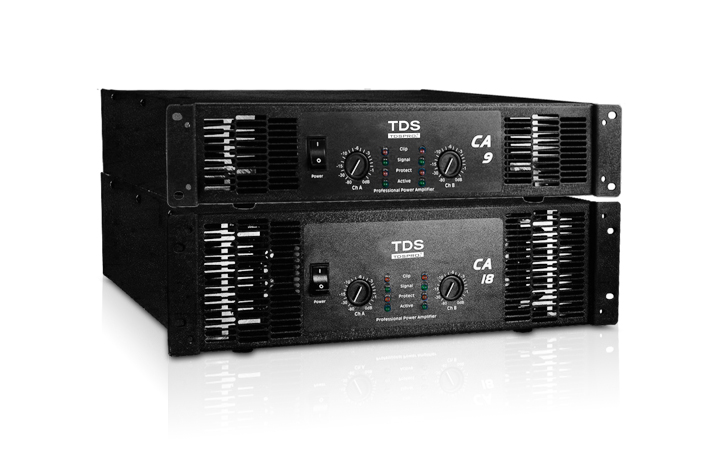

CA SERIES (Professional Power Amplifier )
|
MODEL |
CA 6 | CA 9 | CA 12 | CA 18 |
|
1kHz,0.01%THD+N |
|
|
|
|
|
8Ω Stereo Power |
400W |
600W |
700W |
1000W |
|
4Ω Stereo Power |
600W |
900W |
1200W |
1800W |
|
2Ω Stereo Power |
750W |
1000W |
1400W |
2500W |
|
8Ω Bridged Mono Power |
1200W |
1800W |
2400W |
3600W |
|
20Hz-20KHz,0.1%THD+N |
|
|
|
|
|
8ΩStereo Power |
350W |
550W |
650W |
950W |
|
4ΩStereo Power |
500W |
800W |
1100W |
1700W |
|
2ΩStereo Power |
600W |
900W |
1100W |
2400W |
|
8ΩBridged Mono Power |
1000W |
1600W |
2200W |
3400W |
|
Max RMS Output Voltage（each channel） |
73V |
82V |
90V |
99V |
|
Max Peak Output Voltage |
103V |
116V |
126V |
140V |
|
Frequency Response（+0/-0.3dB,1W/8Ω） |
20Hz-20kHz-3dB@135kHz |
|||
|
Power Bandwidth （rated power at4Ω,1% THD+N） |
20Hz-20kHz-0.84dB/+0dB |
|||
|
THD+N（rated power .4Ω,/1KHz） |
<0.01% |
<0.01% |
<0.01% |
<0.03% |
|
SMPTE IMD（rated power8Ω.60Hz&7kHz） |
<0.01% |
<0.01% |
<0.01% |
<0.01% |
|
Damping Factor（10-400Hz at8Ω） |
400:1 |
700:1 |
800:1 |
800:1 |
|
Input CMRR （1kHz） |
>-60 dB |
>-60 dB |
>-60 dB |
>-70 dB |
|
Stand Input Sensitivity （rated power at 8Ω） |
0.775V |
0.775V |
0.775V |
0.775V |
|
Stand Voltage Gain（rated power@ at 8Ω） |
X68 |
X97.5 |
X68 |
X115 |
|
Input Impedance（balanced/unbalanced） |
>20kΩ/>10kΩ |
>20kΩ/>10kΩ |
>20kΩ/>10kΩ |
>20kΩ/>10kΩ |
|
Hum and Noise（“A”weighted,full power at4Ω） |
-105dB |
-105dB |
-105dB |
-115dB |
|
Crosstalk（“A”weighted, full power at4Ω） |
> -60dB |
> -60dB |
> -60dB |
> -80dB |
|
Class |
H |
H |
H |
H |
|
Filter Storage |
68.000μF |
80.000μF |
140.000μF |
144.000μF |
|
Power Supply（factory configured） |
200V-240V,50-60Hz |
|||
|
Idle Current Draw （120V） |
1.6A |
2.0A |
2.8A |
3A |
|
1/8Power Curr. Draw（typical music cond.,120V/4Ω） |
6.0A |
8.6A |
10.5A |
12.0A |
|
1/3Power Curr. Draw（typical music cond.,120V/4Ω） |
13.0A |
16.0A |
23.0A |
25.0A |
|
Max Curr. Draw（continuous music cond., 120V/4Ω） |
18.0A |
21.0A |
30.0A |
36.0A |
|
Thermal Emissions（1/8 power,4Ω） |
26300BTU/hr |
3250BTU/hr |
4750BTU/hr |
7125BTU/hr |
|
Thermal Emissions（1/3power,4Ω） |
3713BTU/hr |
4341BTU/hr |
6300BTU/hr |
9540BTU/hr |
|
Dimensions （H x W x Depth to rear rack ears） |
89x483x475mm |
133x483x475mm |
||
|
Gross Weight |
22.24kg |
23.60kg |
26.60kg |
37.23kg |
|
Net Weight |
19.97kg |
21.33kg |
24.33kg |
34.96kg |
