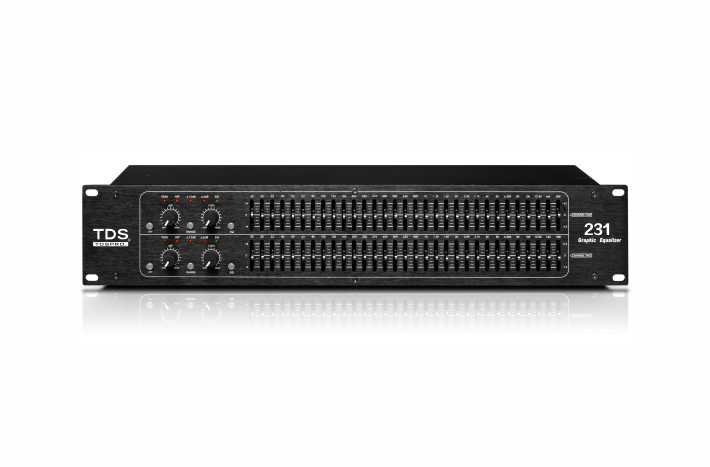

231(EQUALIZER )
•2x31 bands constant-Q and 1/3 octave
•All made by STM(Surface Mounting Technology)
•Double 7 bands LED level indicator
•High cut and low cut function, the frequency is adjustable
|
MODEL |
EQ231 |
|
Input Jack |
1/4"TRS，XLR connector |
|
Input Impedance |
Balance:40KΩ；Unbalance：20KΩ |
|
Intput Range |
≤+18dB |
|
Output Jack |
1/4"TRS and XLR connector |
|
Output Impedance |
Balance:300Ω；Unbalance：150Ω |
|
Frequency Response |
20Hz～20kHz±3dB |
|
S/NR |
≥82dB |
|
Max Output |
+22dB Balance；+16dB Unbalance |
|
THD |
≤0.01%（0dB，1kHz) |
|
Power Consumption |
≤20W |
|
Power Supply |
AC110V or 220V 50/60Hz |
|
The height of Unit |
2U |
|
Product Dimension(WXDXH) |
482×127×88mm |
|
Net Weight |
3.5kg |
|
Shipping Dimension(WXDXH) |
1PC:553×296×152mm |
|
Gross Weight |
1PC:5.5(kg) |
