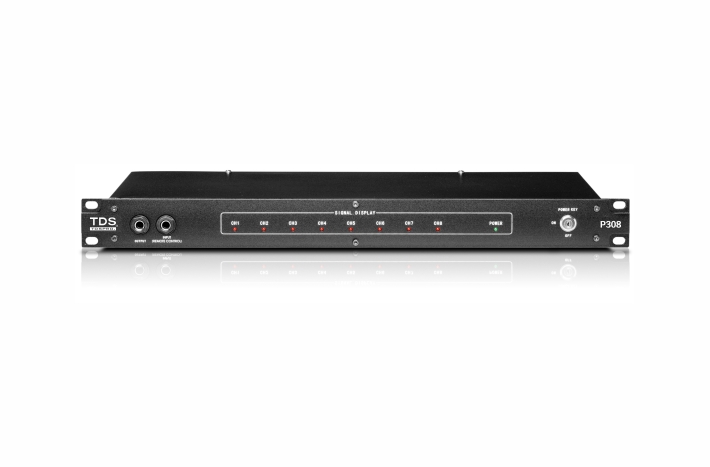

P308(POWER SEQUENCE)
•Using Single Chip Micro Computer(MCU) controller. The delay time is programmable & more precise reliably.
•8 channels and 20KW Power supply. Each channel has of independent EMI-Power Filter , CE certificate approved.
•Using Triphase 5-pin professional socket, Diphase & Triphase are compatible.
•Every output channel can be turned off immediately .
•Password
function.
•Link In & Link Out function .
•Overload Voltage Alarm function: It alarms whenever the voltage is out of the range which you setup.
•Multi-sockets meet your different plugs
|
Model |
P308 |
|
Voltage |
Single-phase:110V or 220V(±20%) Triphase：190V or 380V |
|
Power Frequency |
50Hz or 60Hz(±5%) |
|
Power Input |
Diphase&Triphase,5-pin industrial socket,32Ainput |
|
Protection |
Overload current protection & shot protection |
|
Voltage Meter |
±1% no-load accuracy, ±1% accuracy of full- load |
|
Sequencing Channel |
8 pairs of sequence channels of independent control. |
|
Power Output |
8 pairs of outputs, connected with audio load,each pair of audio output will not exceed40A, connected with pure resistance. |
|
Time Sequence |
Programable |
|
Single-way Switch |
With Single-way switch, any channel can be turgently |
|
Voltage setup error |
5% |
|
Overload voltage accuracy |
±1% of no load accuracy, ±1% of accuracy of full load |
|
Grounding Resistance |
R≤100mΩ |
|
The height of Unit |
2U |
|
Product Dimension(WXDXH) |
482x400x88mm |
|
Net Weight |
10.25kg |
|
Shipping Dimension(WXDXH) |
1PC:607×183×524mm |
|
Gross Weight |
1PC:11kg |
