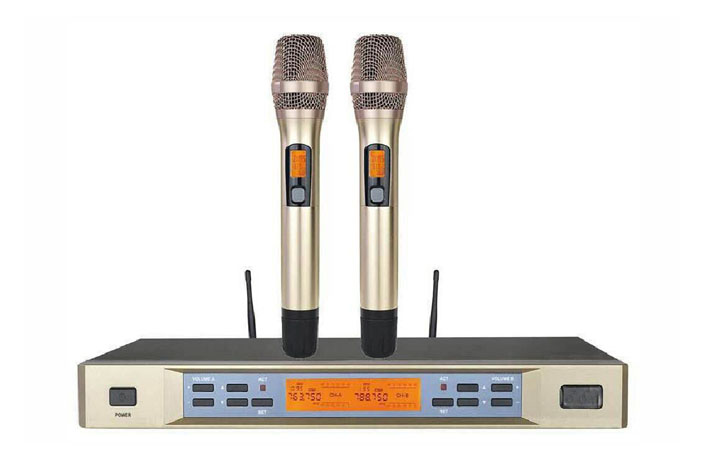

JS3300(UHF WIRELESS MICROPHONE)
|
MODEL： |
JS-3300 UHF WIRELESS MICROPHONE |
|
RECEIVER |
|
|
FrequencyRanges |
UHF740-790MHz |
|
Frequency Stability |
±0.002% |
|
Sensitivity（peak deviation） |
10μV |
|
F/N Ratio |
>8odB |
|
P/N Ratio |
>80dB |
|
S/N Ratio |
>90dB |
|
AF Output Voltage（at peak deviation 1kHz AF out） |
adjustable 0 ~ 300mV |
|
Channels |
2ch |
|
Output jack |
6.3 imbalance |
|
Power Supply |
DC 12V-1000mA(50Hz) |
|
Antenna |
outside antenna |
|
Dynamic frequency range |
>100dB |
|
T.H.D |
<1% |
|

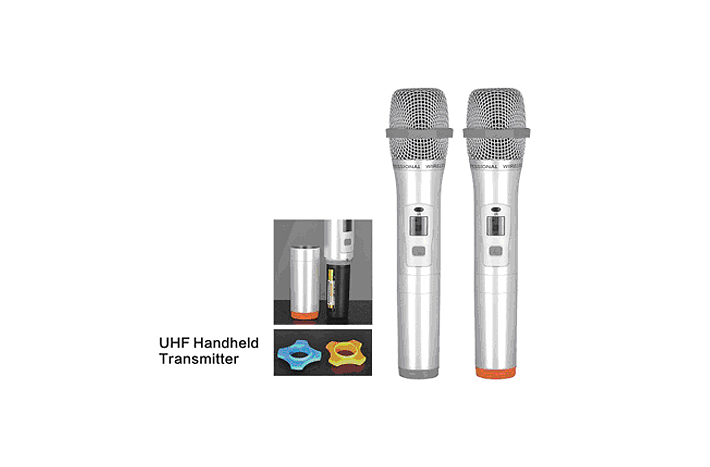

TRANSMITTER |
|
|
FrequencyRanges |
UHF740-790MHz |
|
Frequency Stability |
0.002% |
|
RF Power |
30mW |
|
Cuttent Consumption |
< 120mA@3V |
|
Modulation Mode |
FM |
|
DeviationRange |
±20KHz |
|
Microphone Head |
super cardioid moving coil |
|
Frequency Response |
50Hz ~ 15KHz |
|
Receiver distance |
80m |
