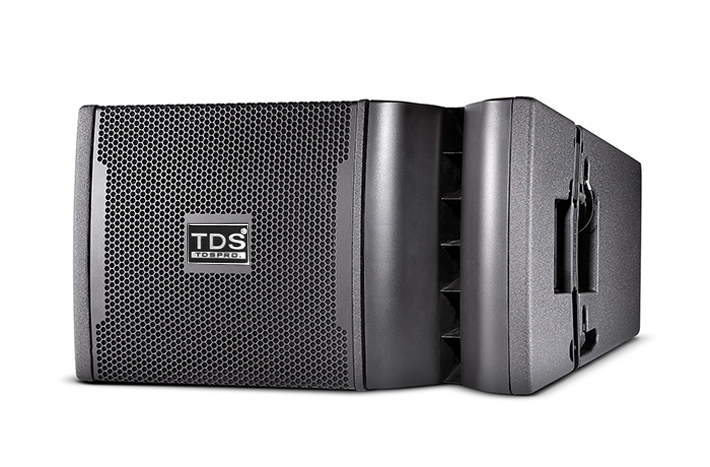

MODEL:VRX932 (1×12＂2-way line array System)
• Compact 12inch line array system.
• Three units neodymium driver inside.
• Advanced horn design.
• Bi-amp and passive switching.
• Medium live performance.
• High class hall, conference meeting room.
• Church, club etc.
| TECHNICAL SPECIFICATION | |
| Frequency Range(-10dB)： | 57Hz-20kHz |
| Frequency Response(±3dB)： | 75Hz-20kHz |
| Horizontal Coverage Angle(-6dB): | 100° |
| Vertical Coverage Angle (-6dB)： | 15° |
|
HF Driver: |
3 x 1.5inch voice-coil neodymium compression driver |
|
LF Driver: |
1 x 12inch differential driver with dual voice-coil. |
| System Input Power Rating： | LF：600W Continuous. 1200W Peak. |
| HF：180W Continuous. 360W Peak. | |
|
Crossover Modes ： |
Bi-amp / passive, externally switchable. |
| System Maximum SPL ： | Passive 95dB SPL |
|
|
Bi-amp LF 95dB SPL |
|
|
Bi-amp HF 114dB SPL |
| Nominal Impedance ： |
Passive: 8ohm |
|
|
Bi-amp LF: 8ohm |
|
|
Bi-amp HF: 8ohm |
| PHYSICAL DATA | |
| Dimensions： | W597 x H343 x D376(mm) |
| Weight(net)： | 21kg |
| Connectors： | Neutrik Speakon NL-4 (x 2) |
| Cabinet Material： | 18mm, 11-ply birch plywood |
|
Finish: |
Black DuralFlex finish |
|
Grill: |
Power coated, black, 16-guage perforated steel with acoustically transparent foam. |
| Rigging: |
Steel with dual coating zinc and polyester powder. |
