MODEL:W8LC 1×12＂3-way line array System
• High power – maximum SPL 129 dB
• Compact three-way line array enclosure.
• Superior bass impact – all horn design..
• True 90° (-6dB) horizontal mid and HF pattern control.
• Very smooth off –axis response – useable out to 120° (10dB).
• Fast, integral rigging system with variable splay angles.
• Common grid may be used for flying or ground stacking.
• Loudspeaker management preset files for a wide variety of configurations.
• Medium/large scale live performance.
• Touring, theatre, stadium, club.
• Compatible with C218B, SRX728S.
| Line Array Element | |
| System Type: | Three-way line array element |
| Frequency Response: | 60Hz – 18K Hz ± 3dB. |
| Drivers: | 12’’ (300mm)/ 3’’(75mm) voice coil. |
| Hybrid bass horn loaded. | |
| 2 x 6.5’’/ 1.5’’(38mm) coil drivers horn loaded. | |
| 3 x 1’’ (25mm) exit HF compression drivers horn loaded. | |
| Rated Power: | LF: 400W AES, 1600W peak. |
| MF: 200W AES, 800W peak. | |
| HF: 100W AES, 400W peak. | |
| Sensitivity: | LF: 103dB |
| MF: 106dB | |
| HF: 109dB | |
| Maximum SPL: | LF: 129dB continuous, 135dB peak. |
| MF: 129dB continuous, 135dB peak. | |
| HF: 129dB continuous, 135dB peak. | |
| Normal Impedance: | LF: 8ohms |
| MF: 8ohms | |
| HF: 8ohms | |
| Dispersion(-6dB): | 90° horizontal, 7.5° vertical. |
| 120° horizontal / -10dB. | |
| Crossover: | 300Hz, 3K Hz active. |
| Physical Data | |
| Enclosure: | Vertical trapezoid with 3.75° wall angle, |
| multi-laminate birch construction. | |
| Finish: | Textured black paint. |
| Protective Grille: | Black perforated steel. |
| Connectors: | 2 x Neutrik NL8. |

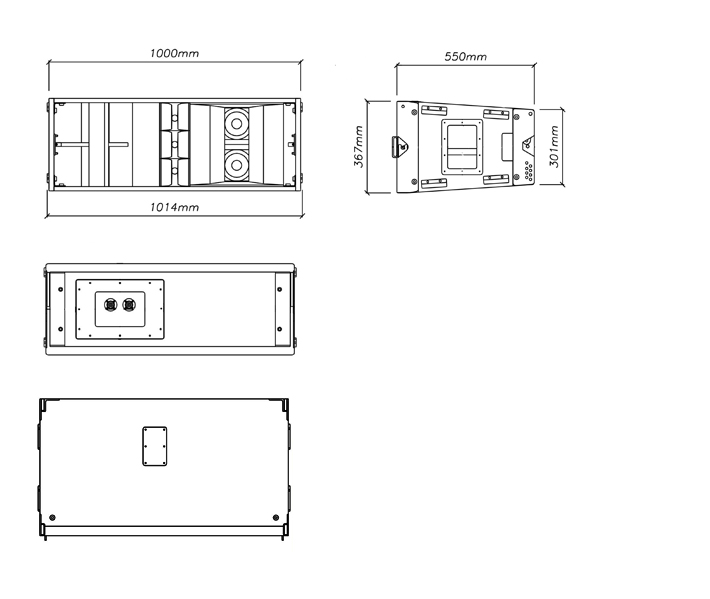

| Dimensions: | (W)1000mm x (H)367mm x (D) 550mm. |
| Weight: | 58kg. |
W8LC
