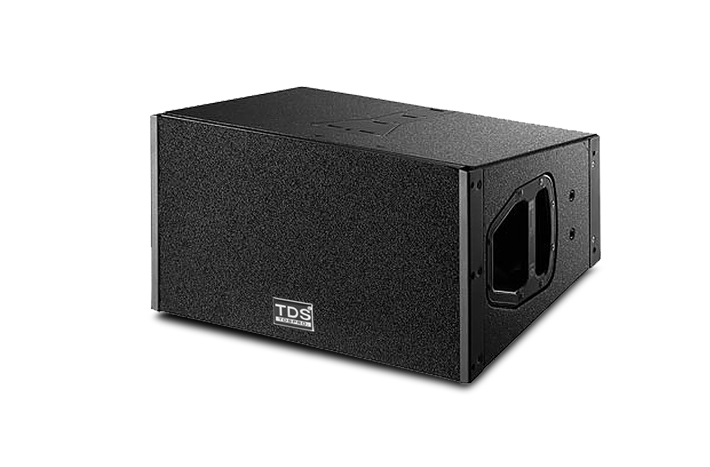

MODEL:Q1 (Two-way 2x10＂Line Array System)
•Neodymium HF compression driver with 75mm voice coil.
•Two units high efficiency neodymium woofer.
•Very compact cabinet with high SPL.

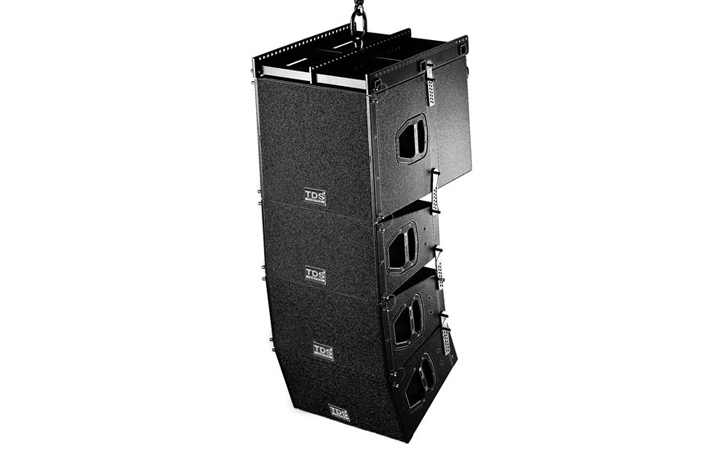

•Innovated rigging system easy for installation.
•Indoor or outdoor live performance.
•Theatre, night club etc.
| Line Array Element | |
| System Type: | Two-way line array element |
| Frequency Range (-10 dB): | 60Hz – 20K Hz |

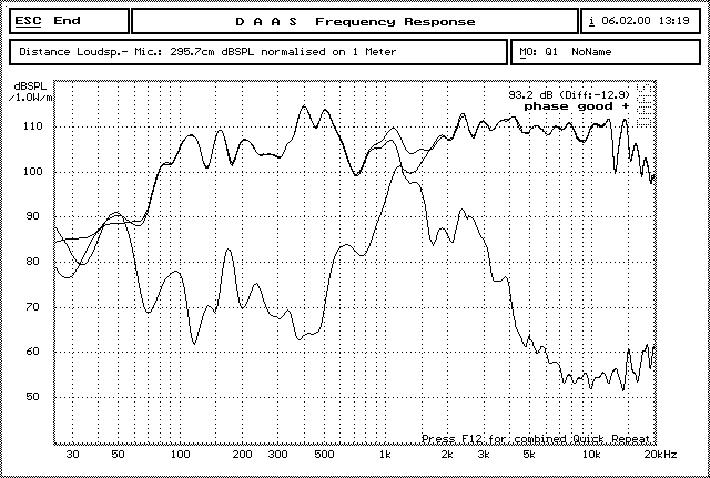

| Frequency Response ( ±3dB): | 80Hz – 17k Hz |
| Horizontal Coverage Angle (-6dB): | 75° |
| Vertical Coverage Angle (-6dB): | 15° |
| System Input Power Rating: | LF 400W Continuous.800WPeak. |
| HF 100W Continuous.400WPeak. | |
| Maximum PeakOutput: | 139dBSPLPeak. |
| Recommended Amplification: | LF: 2 x 800W into 8ohms |
| HF: 2 x 200W into 8ohms | |
| Physical Data | |

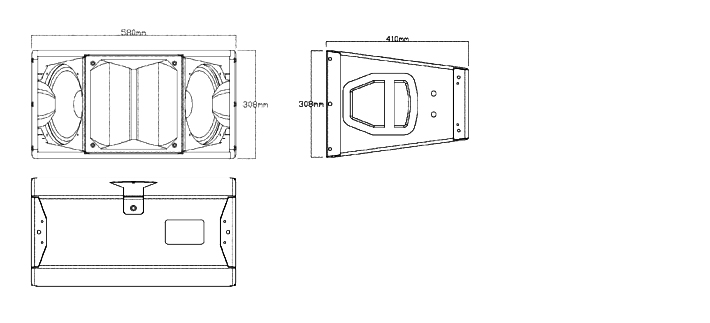

| Dimensions (W x H x D): | 580 x 308 x 410mm |
| Weight (net): | 23kg |
| Connectors: | 2 x 4 point Speakon |
| Material: | Baltic birch plywood |
| Finish: | Wear-resistant black textured paint |
| Front: | Polyester powder-coated steel grill. |
| Rigging: | Steel with dual coating zinc and polyester powder. |
