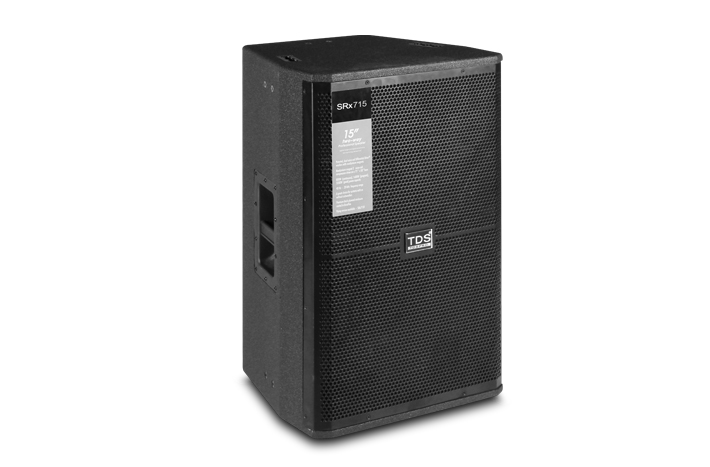

MODEL:SRX715 (Two-way 15" Full Range Speaker)

•High efficiency compression driver with 75mm voice coil.

•15inch LF transducer with 100mm voice coil & 220mm magnet.

•With five suspension points, very convenient for flying installation.

•Max. SPL to 137 dB.


•Live performance sound reinforcement.

•Monitor usage.

•Fixed installation in club, house workshop church.


System Type：
 2-way 15" full range
Frequency Response：
 53Hz-20kHz ±3 dB
Dispersion(H×V)：
 75°× 50°
Handling Power：
 600W(RMS)/1200W(PEAK)
Sensitivity：
 96 dB
MAX.SPL.：
 137 dB
Impedance：
 8 ohms
Suspension：
 Yes
Dimensions ：
 W440×H710×D406(mm)
Weight(net)：
 22kg
