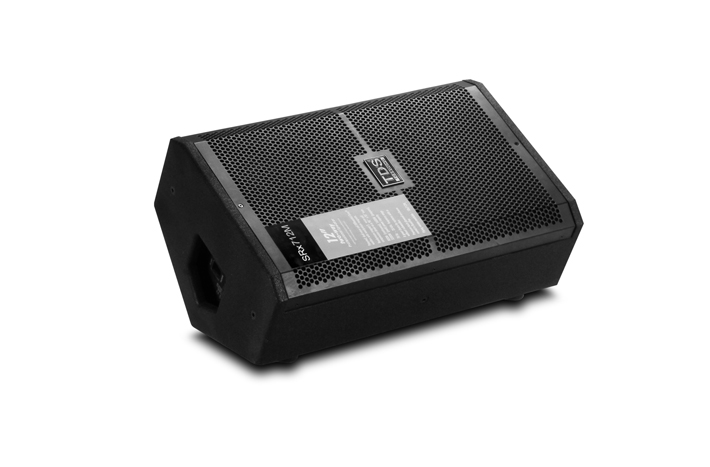

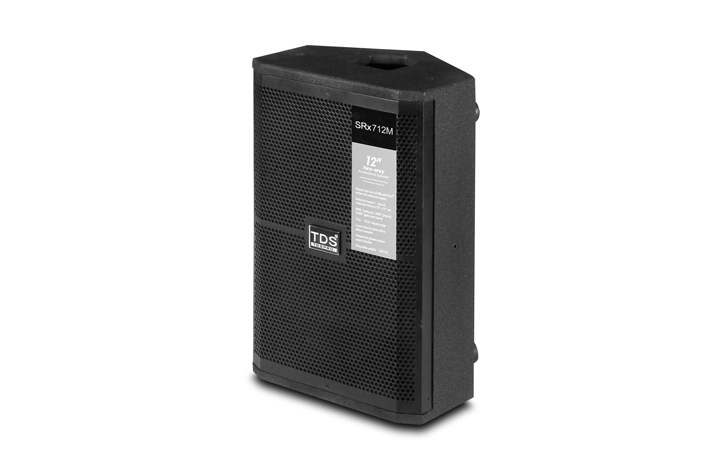

MODEL:SRX712M (Two-way 12" Full Range Speaker)

•Compression driver with 44mm SUZUKI voice coil.

•12inch LF transducer with 7DF paper cone.

•High quality glassfiber horn.

•Excellent stage monitor.

•Durable black hard point finish


•Monitor usage.

•Fixed installation in club.

•Background music reinforcement.


System Type：
 2-way 12" full range

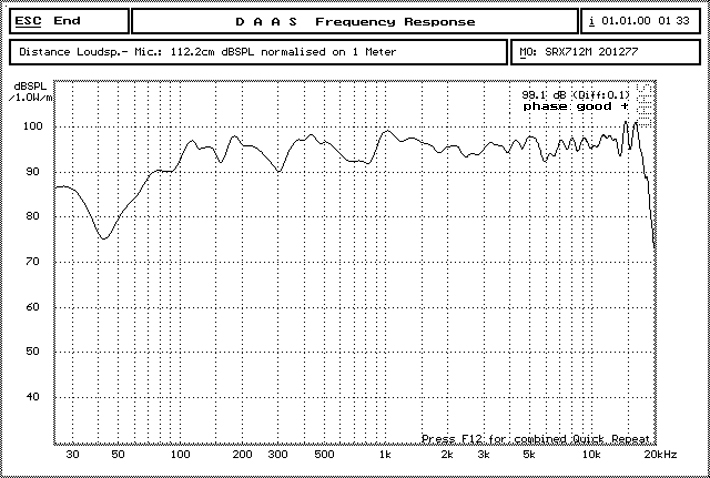

Frequency Response：
 83Hz-18kHz ±3 dB
Dispersion(H×V)：
 90°× 50°
Handling Power：
 500W(RMS)/1000W(PEAK)
Sensitivity：
 96 dB
MAX.SPL.：
 137 dB
Impedance：
 8 ohms
Suspension：
 Yes
Dimensions ：
 W350×H546×D260(mm)
Weight(net)：
 15kg
