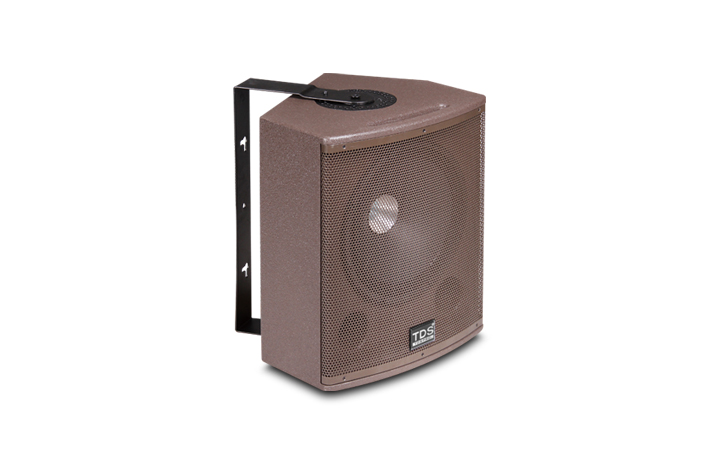

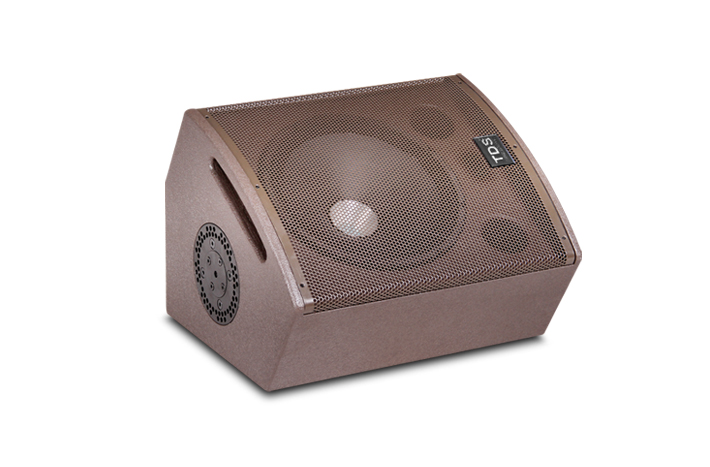

MODEL:TD10(Two-way 10" Coaxial Loudspeaker)

•10inch high quality coaxial transducer.

•Compact birch plywood cabinet.

•Extremely clear vocal voice reinforcement.

•Multifunction installation rigging spare parts.


•Conference room, Classroom, Coffee bar.

•Small live performance.

•Church, bus station etc.


System Type：
 2-way 10" full range

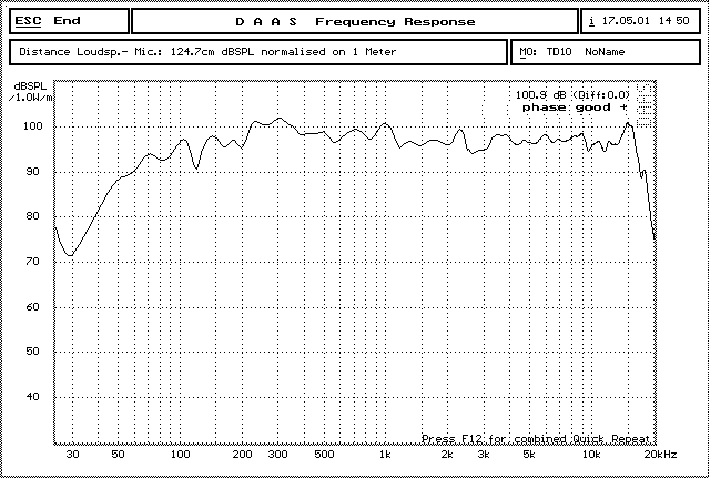

Frequency Response：
 75Hz-20KHz ±3 dB
Dispersion(H×V)：
 90°Axi-Symmetric
Handling Power：
 250W(RMS)/500W(PEAK)
Sensitivity：
 96 dB
MAX.SPL.：
 121 dB
Impedance：
 8 ohms
Suspension：
 Yes

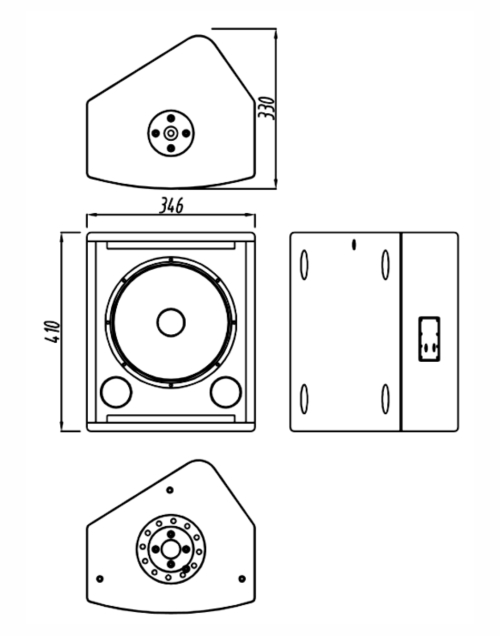

Dimensions ：
 W346×H410×D330(mm)
Weight(net)：
 15kg
