MODEL:TD12(Two-way 12" Coaxial Loudspeaker)

•High quality 12inch coaxial transducer.

•Extremely clear vocal voice reinforcement.

•Multifunction installation rigging spare parts.

•Optional cabinet color finish.


•Conference room, Classroom, Coffee bar.

•Small live performance.

•Church, bus station etc.


System Type：
 2-way 12" full range

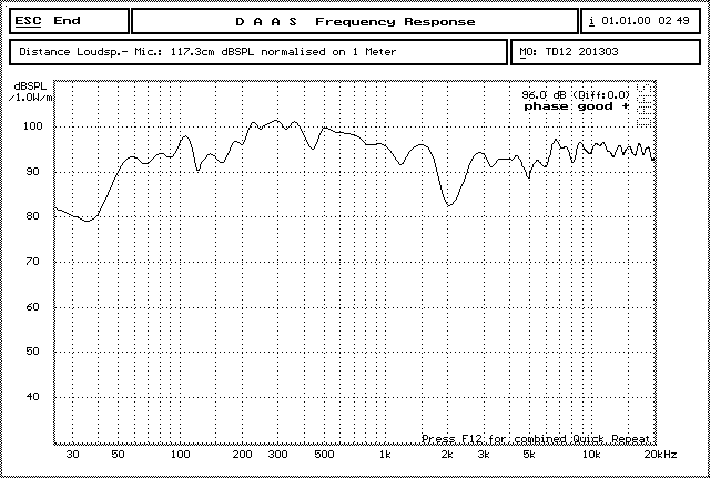

Frequency Response：
 65Hz-20KHz ±3 dB
Dispersion(H×V)：
 90°Axi-Symmetric
Handling Power：
 300W(RMS)/600W(PEAK)
Sensitivity：
 97dB
MAX.SPL.：
 123 dB
Impedance：
 8 ohms
Suspension：
 Yes
Dimensions ：
 W400×H480×D380(mm)
Weight(net)：
 20kg
