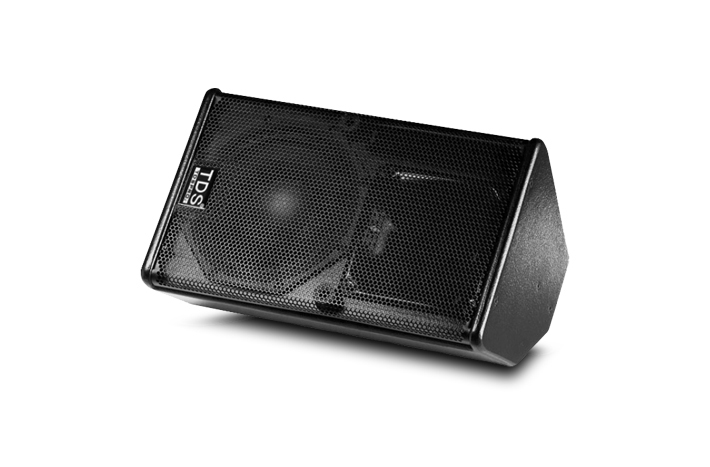

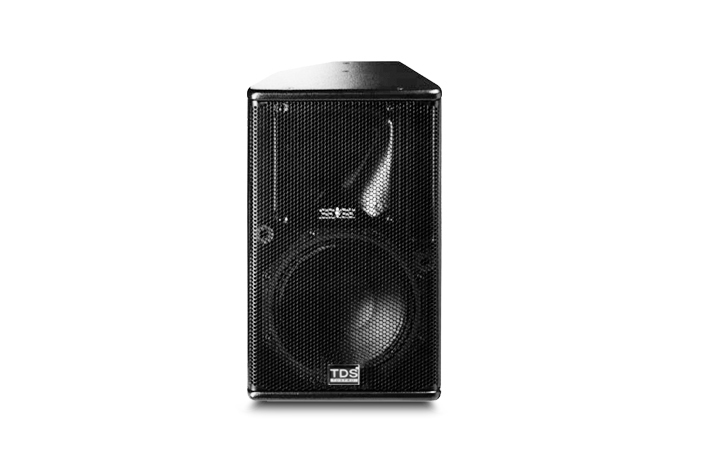

MODEL:PS8 (Two-way 8" Full Range Speaker)

•High efficiency compression driver with 44mm voice coil.

•8inch LF transducer with 50mm voice coil.

•Good quality birch plywood cabinet.

•Fairly smooth craft finish.


•Speech sound reinforcement.

•Fixed installation in club.

•Background music reinforcement.


System Type：
 2-way 8" full range

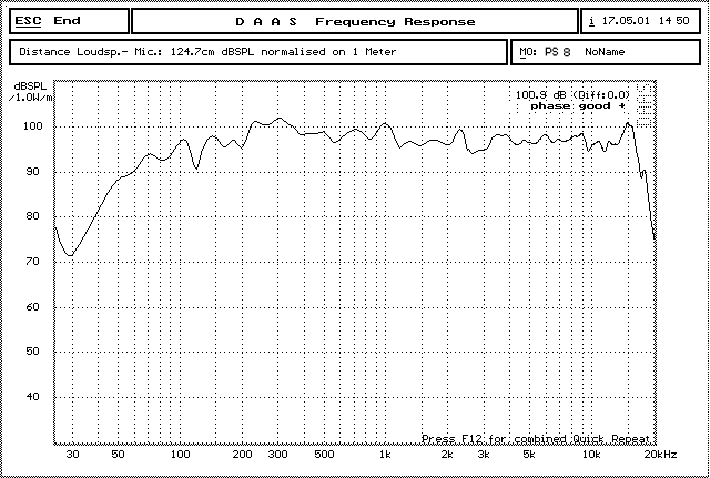

Frequency Response：
 69Hz-20kHz ±3 dB
Dispersion(H×V)：
 80°× 50°
Handling Power：
 150W(RMS))/300W(PEAK)
Sensitivity：
 96 dB
MAX.SPL.：
 128 dB
Impedance：
 8 ohms
Suspension：
 Yes

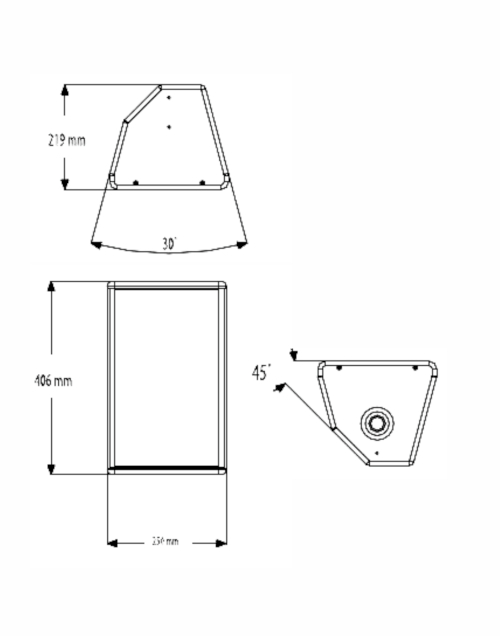

Dimensions ：
 W250×H406×D219(mm)
Weight(net)：
 7.5kg
