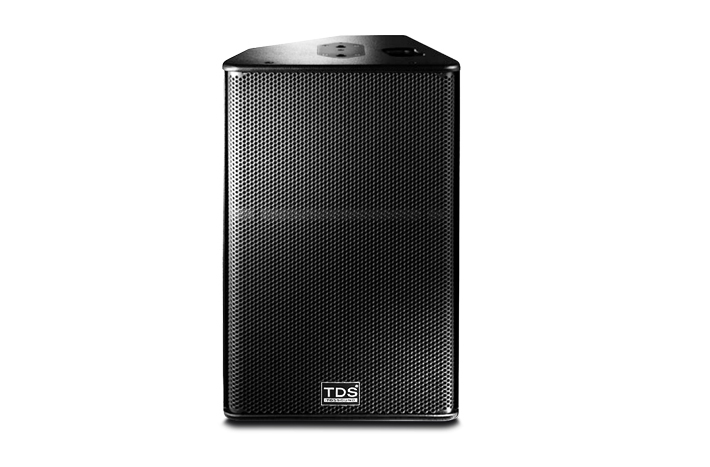

MODEL:PS12 (Two-way 12" Full Range Speaker)

•Compression driver with 1inch throat & 44mm voice coil.

•12inch LF transducer with 75mm voice coil.

•High performance in Mid-range frequency.

•Fairly smooth craft finish.

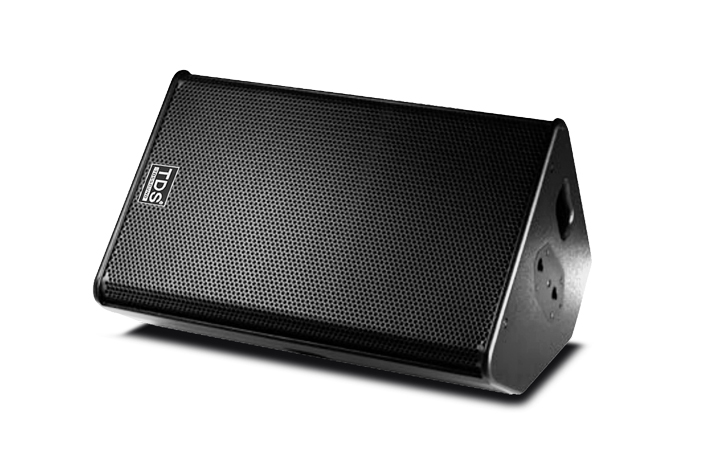

•High quality stage monitoring for club.

•Fixed installation in club.

•Full-in system in conjunction with larger TDS system.


System Type：
 2-way 12" full range

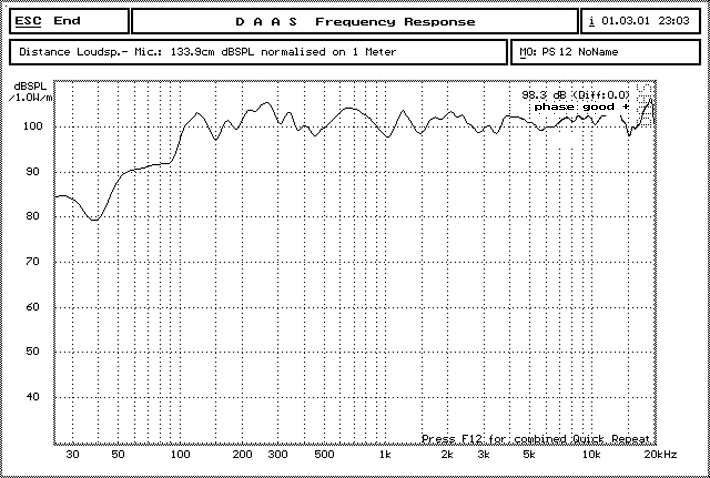

Frequency Response：
 55Hz-18kHz ±3 dB
Dispersion(H×V)：
 100°× 55°
Handling Power：
 300W(RMS)/600W(PEAK)
Sensitivity：
 100 dB
MAX.SPL.：
 136 dB
Impedance：
 8 ohms
Suspension：
 Yes
Dimensions ：
 W371×H578×D333(mm)
Weight(net)：
 20kg
