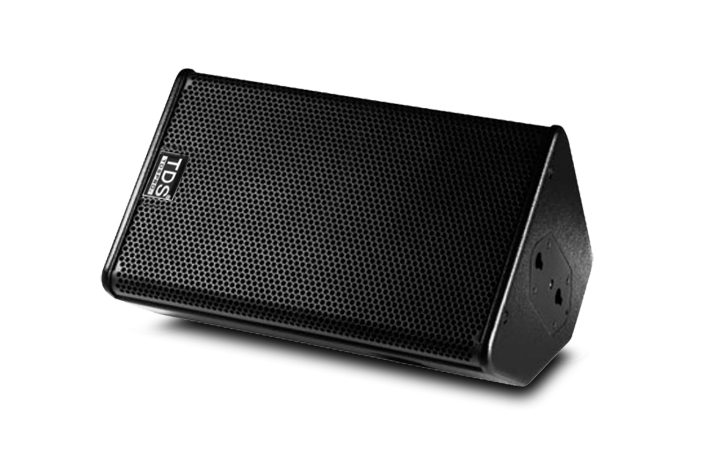

MODEL:PS10 (Two-way 10" Full Range Speaker)

•Compression driver with 1inch throat & 44mm voice coil.

•Compact two-way cabinet design.

•10inch LF transducer with 65mm voice coil.

•Clearly vocal voice reinforcement.


•High quality stage monitoring for club.

•Fixed installation in club.

•Full-in system in conjunction with larger TDS system.


System Type：
 2-way 10" full range

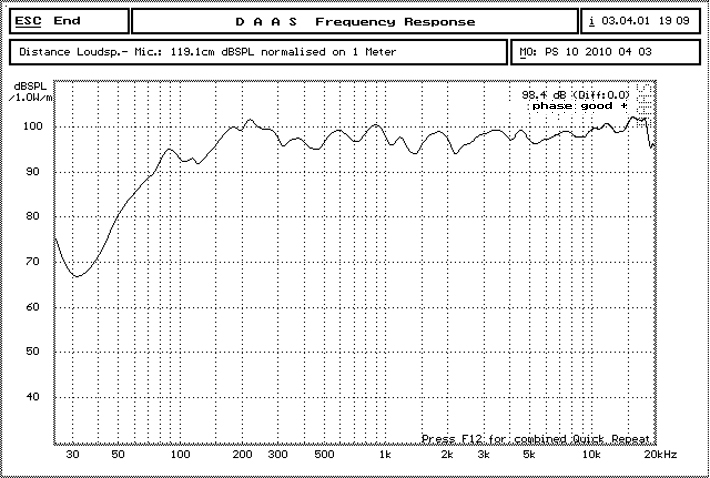

Frequency Response：
 58Hz-20kHz ±3 dB
Dispersion(H×V)：
 100°× 55°
Handling Power：
 250W(RMS)/500W(PEAK)
Sensitivity：
 99 dB
MAX.SPL.：
 133 dB
Impedance：
 8 ohms
Suspension：
 Yes

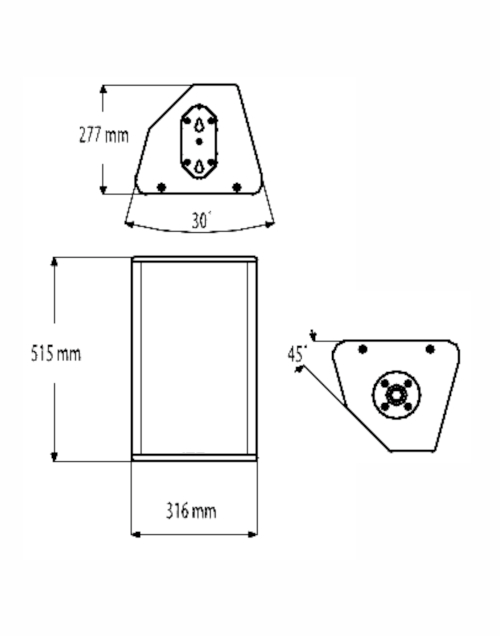

Dimensions ：
 W316×H515×D277(mm)
Weight(net)：
 14kg
