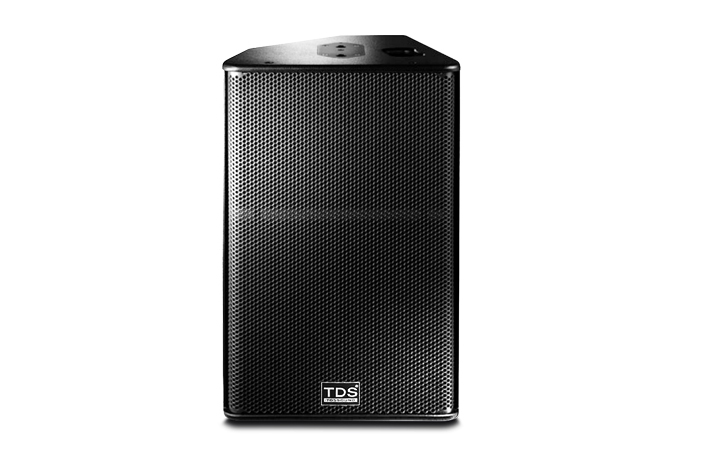

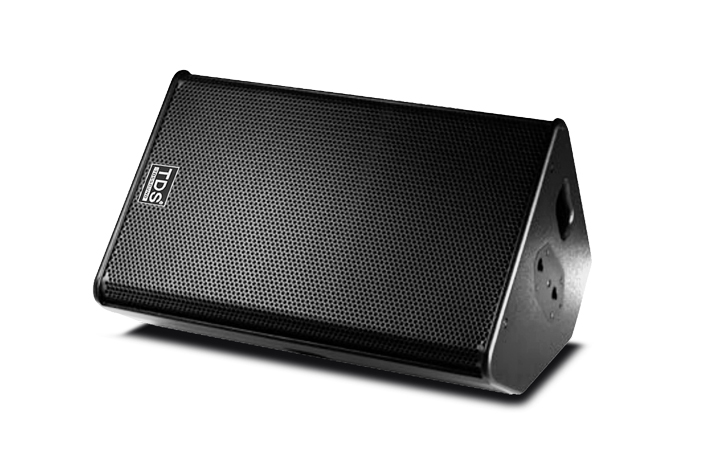

MODEL:PS15 (Two-way 15" Full Range Speaker)

•Power compression driver with 75mm voice coil.

•Voice coil from SUZUKI.

•15inch LF transducer with UKM paper cone.

•Max. SPL can reach 138dB.


•High-end club live performance.

•High powered stage monitoring.

•Full-in system in conjunction with larger TDS system.


System Type：
 2-way 15" full range
Frequency Response：
 50Hz-18kHz ±3 dB
Dispersion(H×V)：
 100°× 55°
Handling Power：
 500W(RMS)/1000W(PEAK)
Sensitivity：
 102 dB
MAX.SPL.：
 138dB
Impedance：
 8 ohms
Suspension：
 Yes

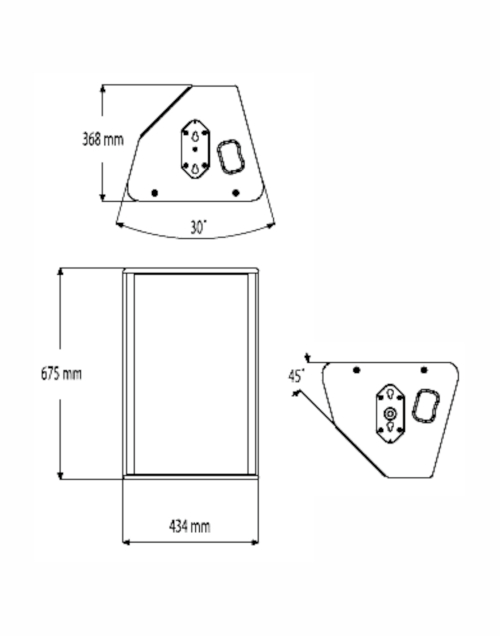

Dimensions ：
 W434×H675×D368(mm)
Weight(net)：
 26.7kg
