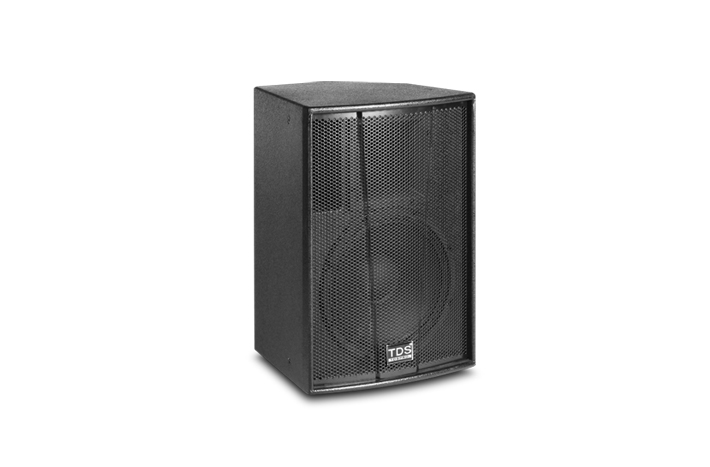

MODEL:F10+(Two-way 10" Full Range Speaker)

•High quality compression driver with 44mm SUZUKI voice coil.

•10inch LF transducer with original UKM paper cone.

•Compact designed birch plywood cabinet.

•Multi rigging points.


•Live performance.

•Disco room.

•Conference meeting room.

•Dance club.


System Type：
 2-way 10" full range

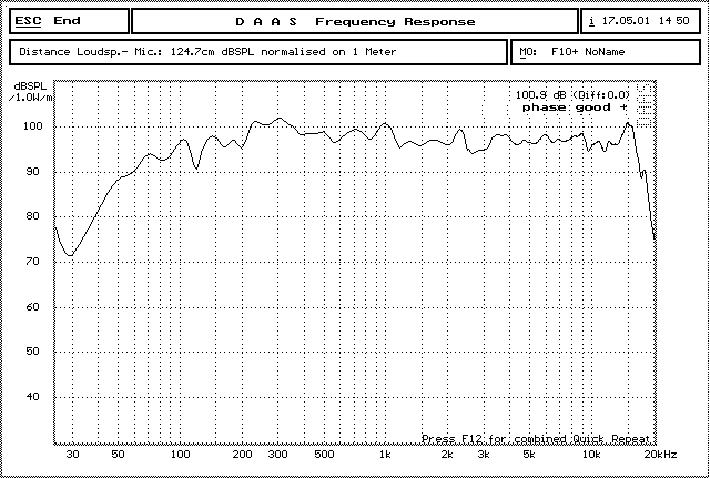

Frequency Response：
 65Hz-20KHz ±3dB
Dispersion(H×V)：
 90°× 50°
Handling Power：
 250W(RMS)/500W(PEAK)
Sensitivity：
 96dB
MAX.SPL.：
 125dB
Impedance：
 8 ohms
Suspension：
 Yes

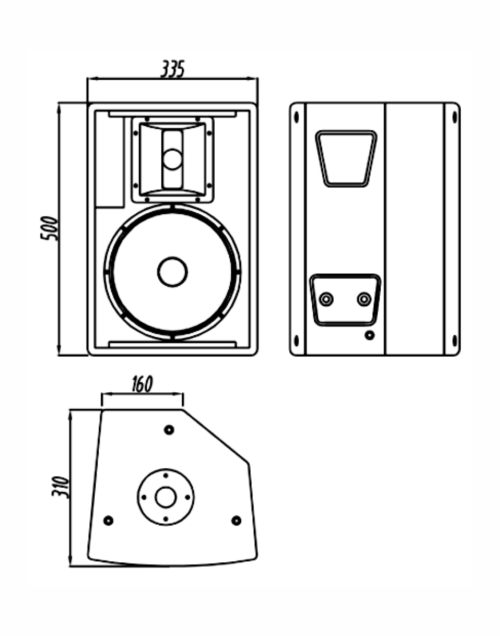

Dimensions ：
 W335×H500×D310(mm)
Weight(net)：
 17kg
