S18+(18" Sub woofer)

• Long excursion 18inch transducer with 4inch voice coil.

• Durable18inch transducer with UKM paper cone.

• Max. SPL can reach 136dB.

• Top hat on top of S18+.


• Special effect sub-bass.

• Club sound reinforcement.

• Small to medium touring system.


System Type：
 1x18" Sub bass
Frequency Response：
 40Hz-200Hz ±3 dB
Dispersion(H×V)：
 N/A
Handling Power：
 600W(RMS)/1200W(PEAK)
Sensitivity：
 102 dB
MAX.SPL.：
 136 dB
Impedance：
 8 ohms
Suspension：
 N/A

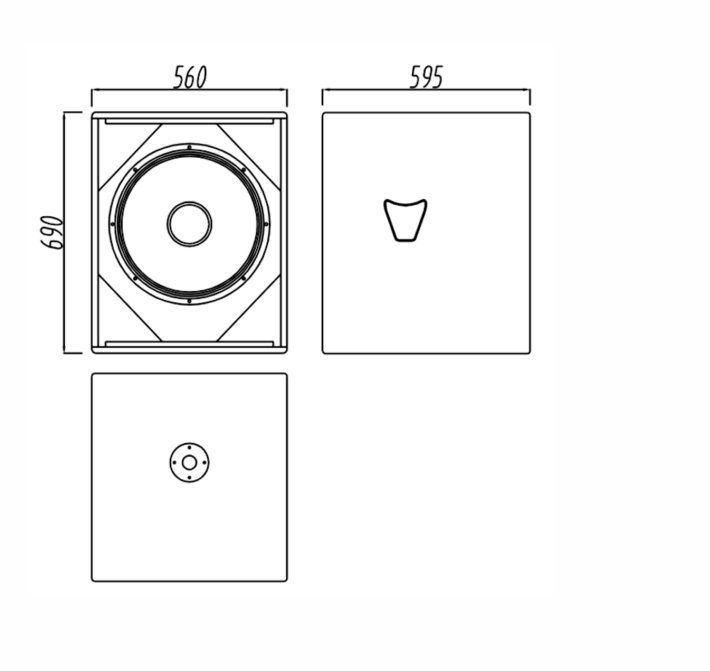

Dimensions ：
 W560×H690×D595(mm)
Weight(net)：
 45kg
