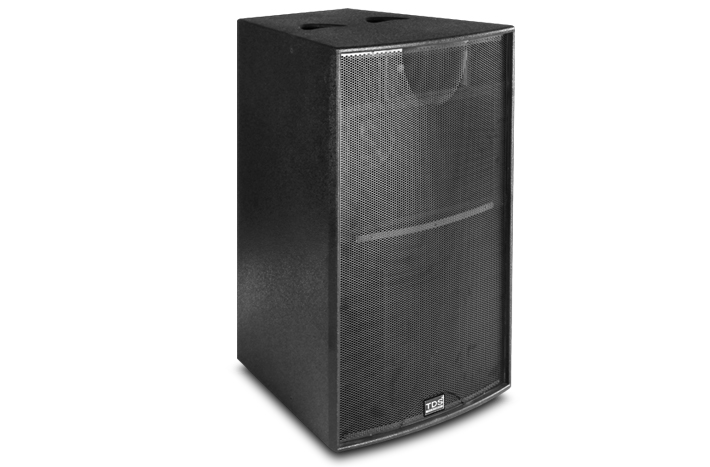

MODEL:H3+(Three-way 15" Full Range Speaker)

•All horn three-way speaker.

•Phase-ball loaded mid driver.

•Fitted with handles and castors.

•HF driver with 1inch throat, 10inch MF driver and 15inch LF transducer.


•Larger club performance.

•Larger scale installs.


System Type：
 3-way 15" full range
Frequency Response：
 50Hz-18kHz ±3 dB
Dispersion(H×V)：
 70°× 40°
Handling Power：
 600W(RMS)/1200W(PEAK)
Sensitivity：
 104 dB
MAX.SPL.：
 137 dB
Impedance：
 8ohms
Suspension：
 Yes

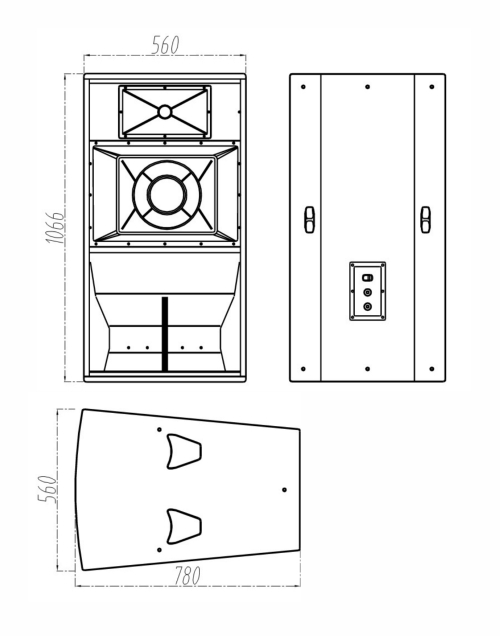

Dimensions ：
 W560×H1066×D780(mm)
Weight(net)：
 77kg

H3+
