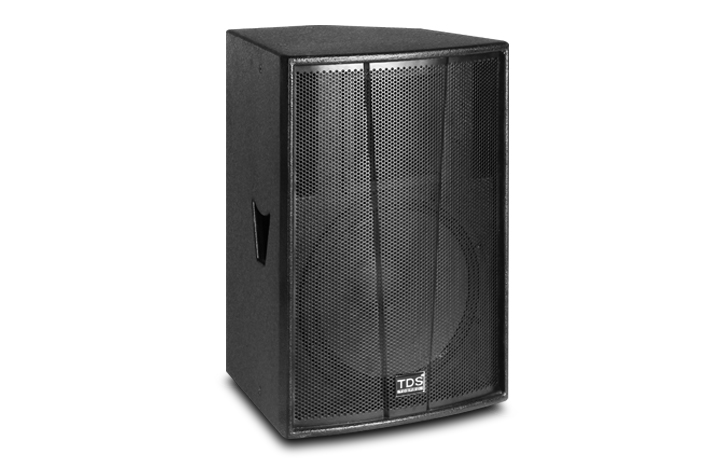

MODEL:F15+(Two-way 15" Full Range Speaker)

•Powerful compression driver with 75mm SUZUKI voice coil.

•15inch LF transducer with 75mm voice coil and UKM paper cone.

•Multi rigging points.

•Multifunction back plate for connecting.


•Music and speech reinforcement.

•Liver performance stage monitoring.

•High-performance satellite speaker for use with subwoofers.


System Type：
 2-way 15" full range

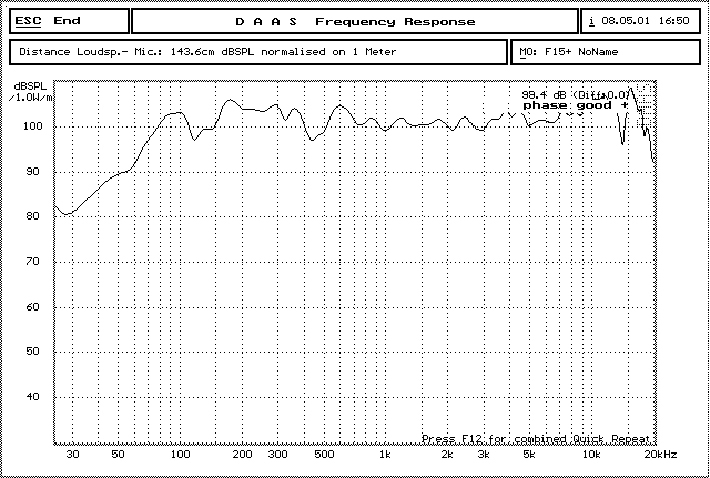

Frequency Response：
 55Hz-18kHz ±3 dB
Dispersion(H×V)：
 80°× 50°
Handling Power：
 400W(RMS)/800W(PEAK)
Sensitivity：
 100 dB
MAX.SPL.：
 130 dB
Impedance：
 8 ohms
Suspension：
 Yes

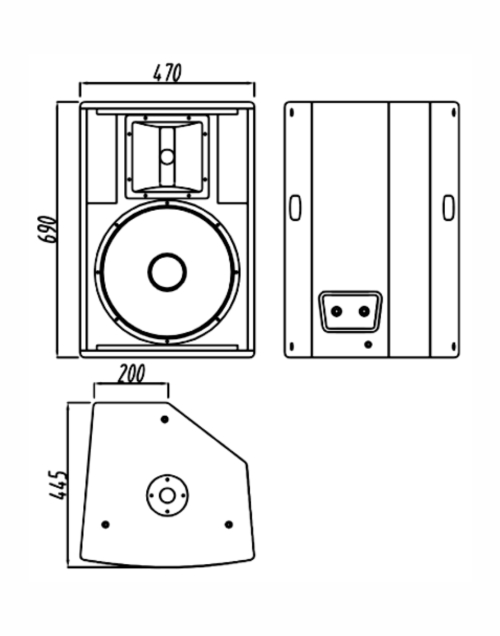

Dimensions ：
 W470×H690×D445(mm)
Weight(net)：
 30.5kg
