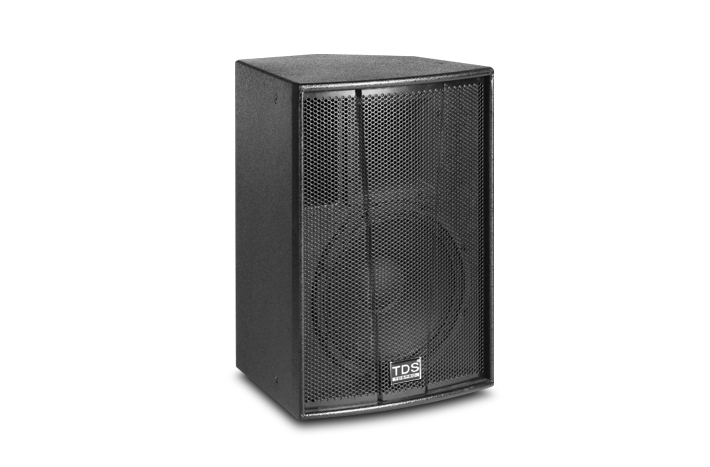

MODEL:F12+(Two-way 12" Full Range Speaker)

•High quality compression driver with 44mm SUZUKI voice coil.

•12inch LF transducer with original UKM paper cone.

•Multifunction back plate for connecting.

•Compact designed birch plywood cabinet.


•Speech reinforcement.

•Liver performance stage monitoring.

•High-performance satellite speaker for use with subwoofers

•Dance club.


System Type：
 2-way 12" full range

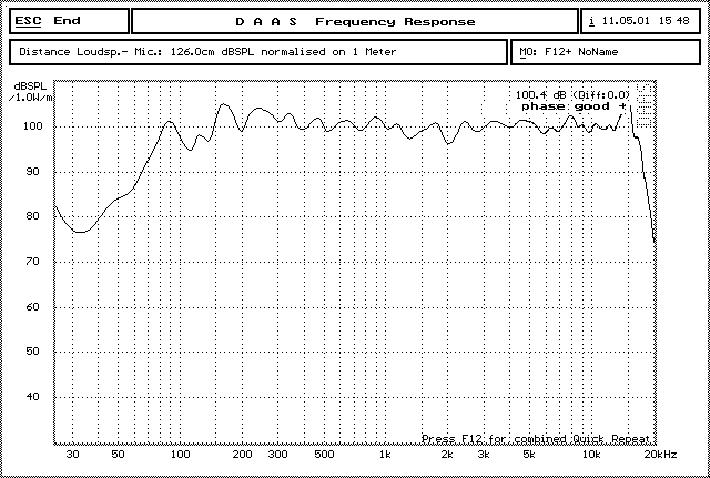

Frequency Response：
 65Hz-18KHz ±3 dB
Dispersion(H×V)：
 80°× 50°
Handling Power：
 300W(RMS)/600W(PEAK)
Sensitivity：
 97 dB
MAX.SPL.：
 129dB
Impedance：
 8 ohms
Suspension：
 Yes

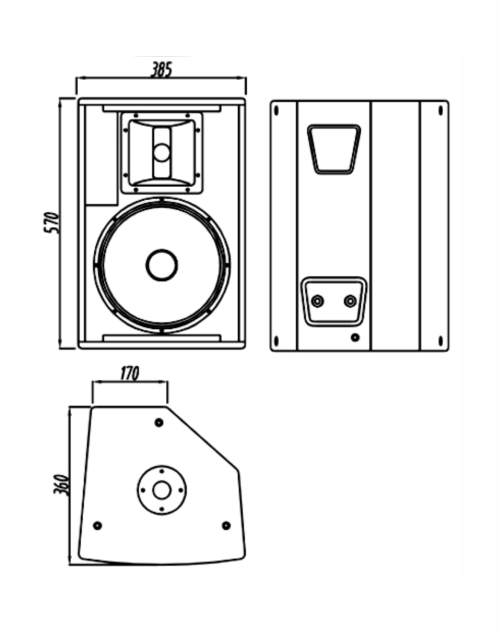

Dimensions ：
 W385×H570×D360(mm)
Weight(net)：
 25kg
