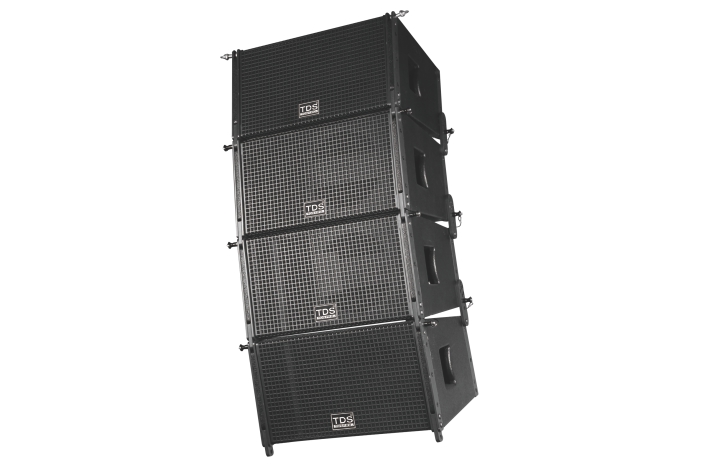

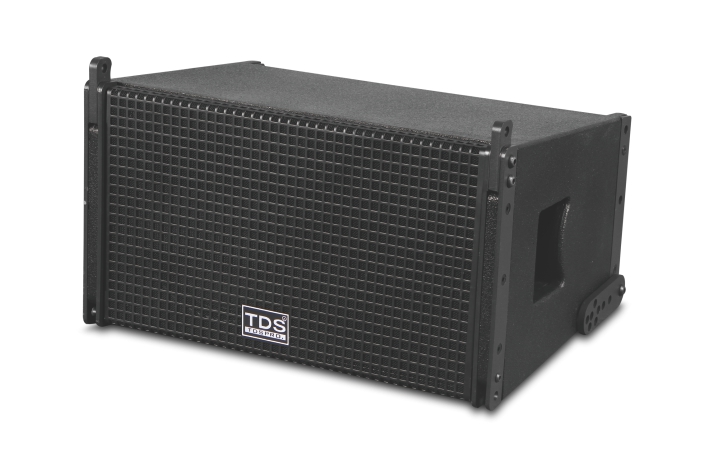

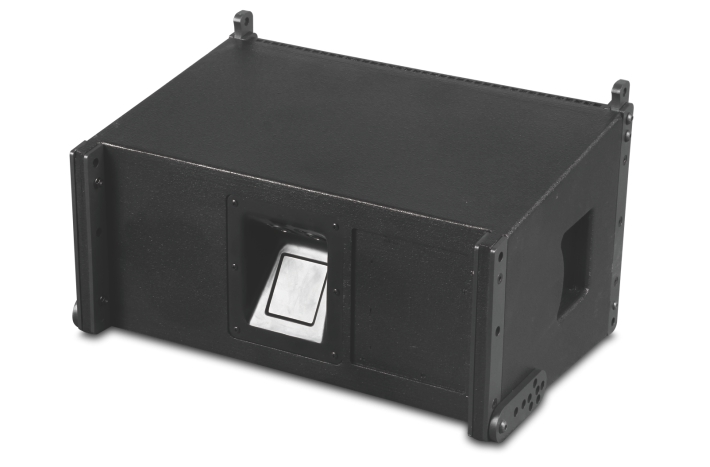

MODEL:LA110(Two-way 1x10＂Line Array System
• Small size mobile live performance.
• High class conference room.
• Theatre, multi-function hall, church.
| TECHNICAL SPECIFICATION | |
| Frequency Range(-10dB)： | 60Hz-20kHz |
| Frequency Response(±3dB)： | 80Hz-16kHz |
| Horizontal Coverage Angle(-6dB): | 80° |
| Vertical Coverage Angle (-6dB)： | Varies with array size and configuration. |
| System Input Power Rating： | LF：300W Continuous. 600W Peak. |
| HF：100W Continuous. 200W Peak. | |
| Maximum Peak Output ： | 133dB |
| Recommended Amplification: | LF： 400W into 8 ohms |
| HF： 600W into 8ohms | |
| PHYSICAL DATA | |

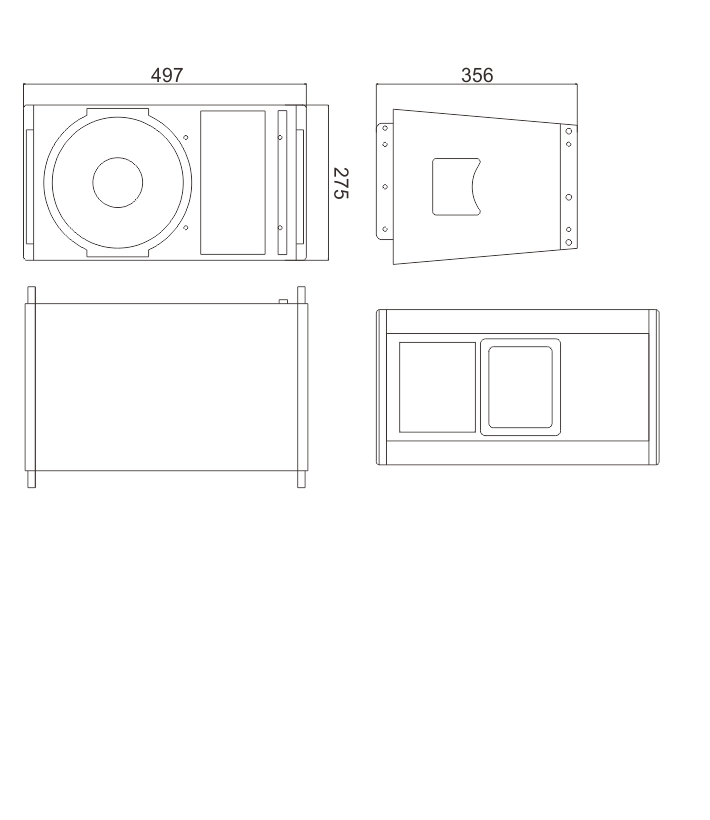

| Dimensions： | W497 x H275 x D356(mm) |
| Weight(net)： | 18kg |
| Connectors： | 2 x NL4MP Neutrik Speakon connectors |
| Cabinet Material： | 18mm birch plytwood |
