MODEL:LA208S (1x18" Sub Bass)

• 18inch LF transducer with 100mm voice coil.

• Birch plywood cabinet with revert horn design.

• Tough black enclosure finish.

• 2 x NL4MP Neutrik Speakon connectors.

• Small size mobile live performance.

• High class conference room.

• Theatre, multi-function hall, church.

TECHNICAL SPECIFICATION
Frequency Range(-10dB)：
 		30Hz-320Hz

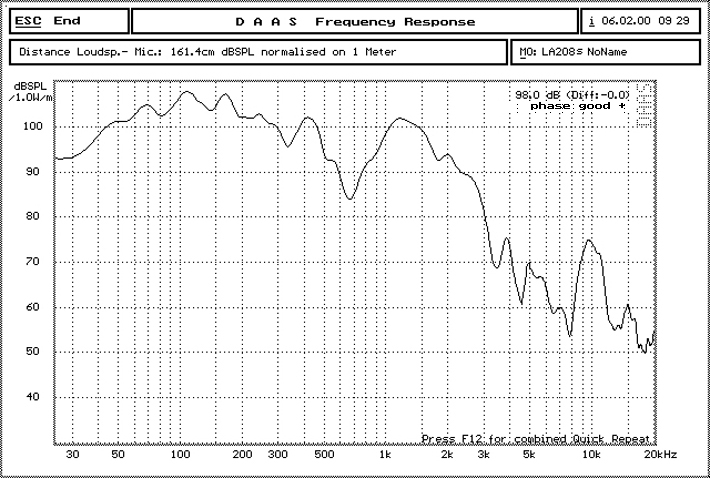

Frequency Response(±3dB)：
 		40Hz-200Hz
System Input Power Rating：
 		LF：600W Continuous. 1200W Peak.
Maximum Peak Output ：
 		130dB
Recommended Amplification:
 		LF： 1000W-1200W into 8 ohms
PHYSICAL DATA
Dimensions：
 		W672 x H247 x D779(mm)
Weight(net)：
 		28kg
Connectors：
 		2 x NL4MP Neutrik Speakon connectors
Cabinet Material：
 		18mm birch plytwood
