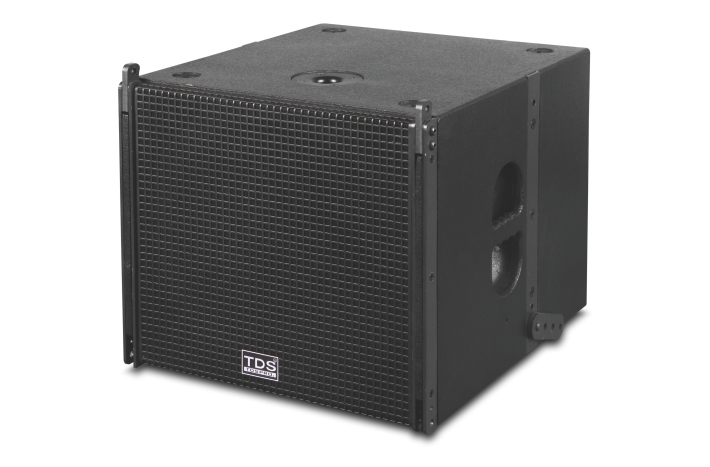

MODEL:LA115S(1x15＂Sub Bass)

• Small size mobile live performance.

• High class conference room.

• Theatre, multi-function hall, church.

TECHNICAL SPECIFICATION
Frequency Range(-10dB)：
 30Hz-320Hz
Frequency Response(±3dB)：
 40Hz-200Hz
System Input Power Rating：
 LF：600W Continuous. 1200W Peak.
Maximum Peak Output ：
 129dB
Recommended Amplification:
 LF： 1000W into 8 ohms
PHYSICAL DATA
Dimensions：
 W497 x H440 x D528(mm)
Weight(net)：
 44kg
Connectors：
 2 x NL4MP Neutrik Speakon connectors
Cabinet Material：
 18mm birch plytwood
