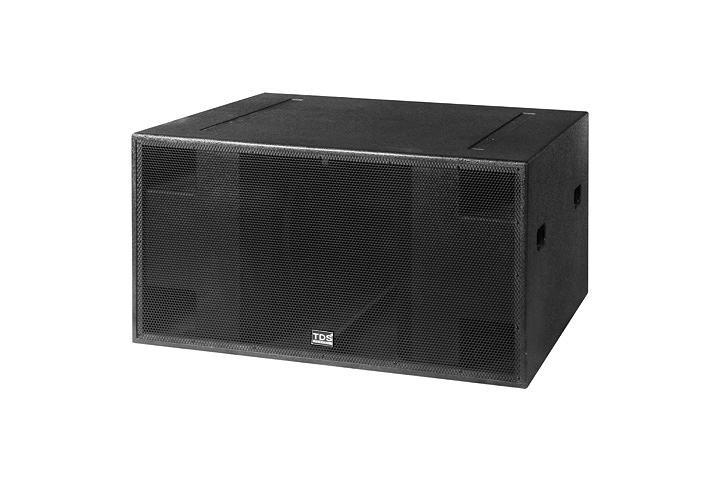

MODEL:LA218S (2x18" Sub Bass)

• Dual 18inch LF transducer with 100mm voice coil.

• Birch plywood cabinet.

• Tough black enclosure finish.

• 2 x NL4MP Neutrik Speakon connectors.

• Large scale indoor & outdoor performance.

• Fixed installation in Stadium, Theatre etc.

• Large scale mobile performance.

 TECHNICAL SPECIFICATION
 Frequency Range(-10dB)：
 		 30Hz-320Hz

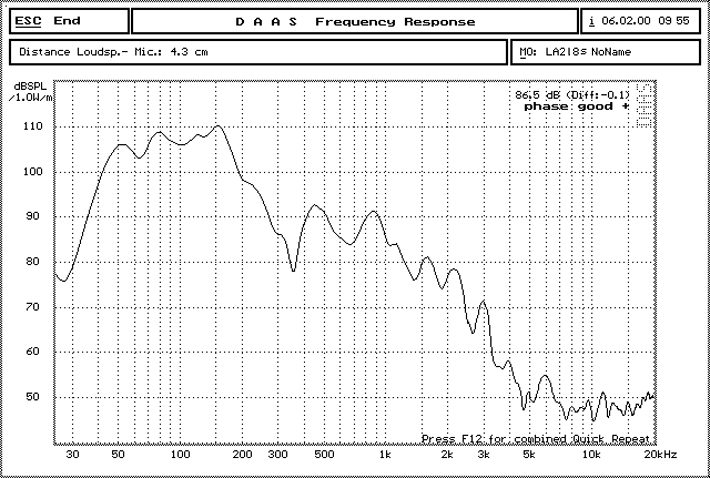

 Frequency Response(±3dB)：
 		 40Hz-200Hz
 System Input Power Rating：
 		 LF：1200W Continuous. 2400W Peak.
 Maximum Peak Output ：
 		 130dB
 Recommended Amplification:
 		 LF： 1200W-1400W into 8 ohms
 PHYSICAL DATA
 Dimensions：
 		 W1100x H595 x D779(mm)
 Weight(net)：
 		 28kg
 Connectors：
 		 2 x NL4MP Neutrik Speakon connectors
 Cabinet Material：
 		 18mm birch plytwood
