Products.

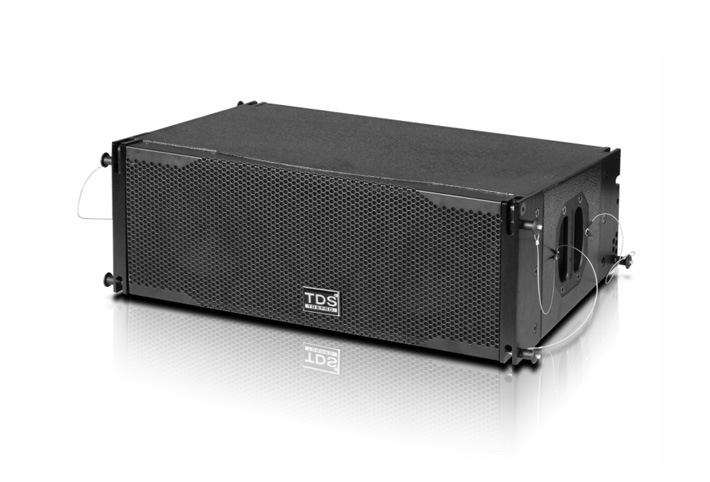

MODEL:LA208 (2×8＂2-way line array System)
• LA208 is a two-way line array system.
• Two Neodymium compression drivers with 44mm voice coil.
• Compact cabinet convenient for mobile usage and fixed installation.

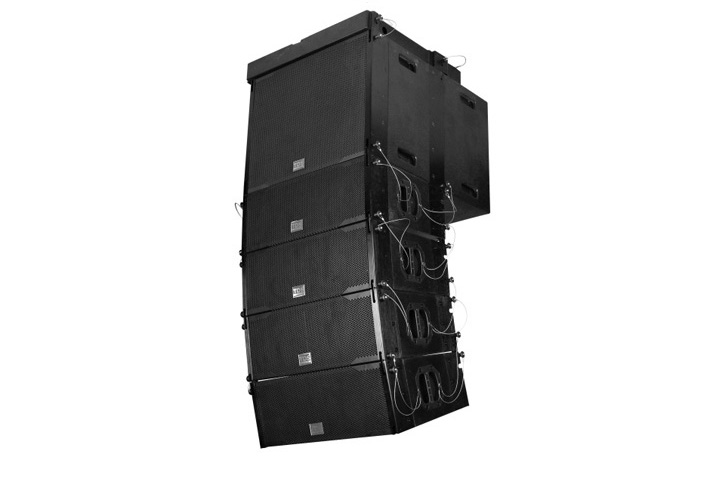

• More choices for vertical coverage angle.
• Fast installation rigging system.

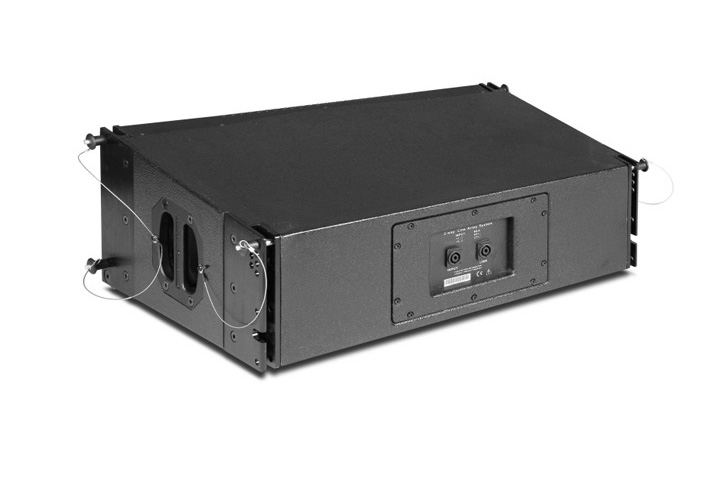

• 2 x NL4MP Neutrick Speakon connectors.
• Small size mobile live performance.
• High class conference room.
• Theatre, multi-function hall, church.
| TECHNICAL SPECIFICATION | |
| Frequency Range(-10dB)： | 70Hz-20kHz |

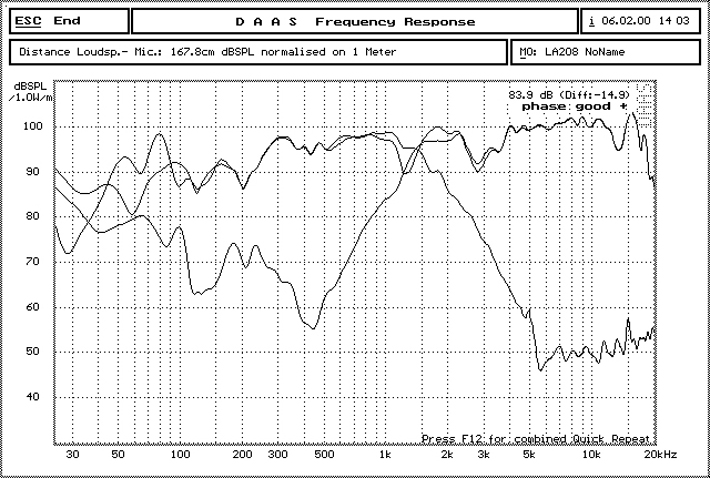

| Frequency Response(±3dB)： | 80Hz-18kHz |
| Horizontal Coverage Angle(-6dB): | 90° |
| Vertical Coverage Angle (-6dB)： | Varies with array size and configuration. |
| System Input Power Rating： | LF：300W Continuous. 600W Peak. |
| HF：120W Continuous. 240W Peak. | |
| Maximum Peak Output ： | 132dB |
| Recommended Amplification: | LF： 800W into 8 ohms |
| HF： 500W into 8ohms | |
| PHYSICAL DATA | |
| Dimensions： | W672 x H247 x D450(mm) |
| Weight(net)： | 19.8kg |
| Connectors： | 2 x NL4MP Neutrik Speakon connectors |
| Cabinet Material： | 18mm birch plytwood |
